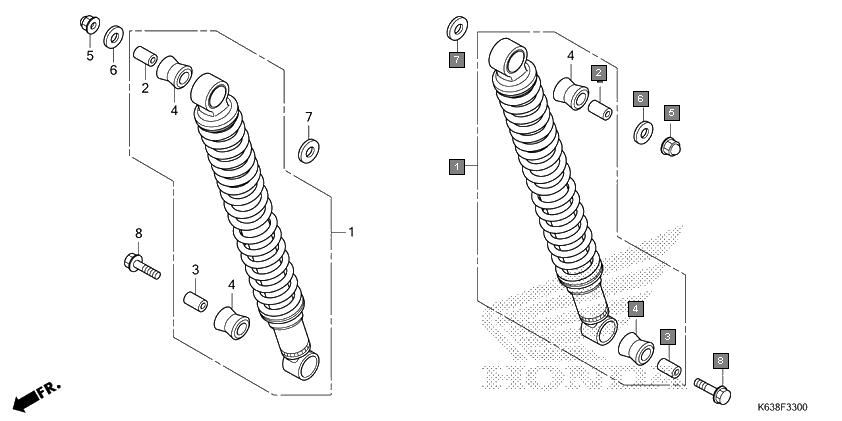

Motorcycles CD 110 Dream CB110C2K Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400K63D33 CUSHION ASSY., RR. 2
2 52400K63901 CUSHION ASSY., RR. 2
3 52485K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
4 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
5 52495K23902 BUSH, RUBBER(ENDURANCE) 4
6 90301K23900 NUT, FLANGE CAP, 10MM 2
7 90551KTE910 WASHER, SPECIAL, 10MM 2
8 9410112000 WASHER, PLAIN, 12MM 2
9 958011003500 BOLT, FLANGE, 10X35 2
