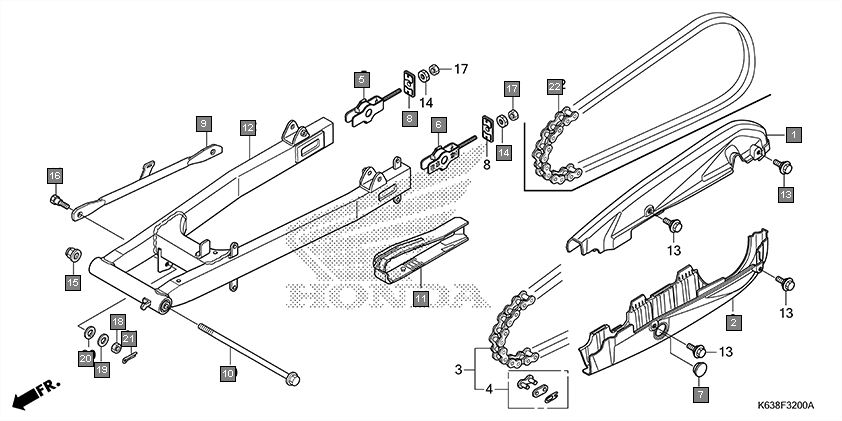

Motorcycles CD 110 Dream CB110C2K Frame Swingarm
Ref.No. Part No. Description Oty
1 40510K14900 CASE, DRIVE CHAIN UPPER 1
2 40520K14900 CASE, DRIVE CHAIN LOWER 1
3 40530K14905 CHAIN, DRIVE(TIDC)(TIDC420-118L) 1
4 40530K14901 CHAIN, DRIVE(DAIDO)(DID420AD-118RB) 1
5 40530K14903 CHAIN, DRIVE(LGB)(LGB R420BS-118L) 1
6 40531KWB601 JOINT, DRIVE CHAIN(DAIDO) 1
7 40531KST941 JOINT, DRIVE CHAIN(TIDC) 1
8 40531KTE912 JOINT, DRIVE CHAIN(LGB) 1
9 40543K14900 ADJUSTER COMP., R. CHAIN 1
10 40544K14900 ADJUSTER COMP., L. CHAIN 1
11 40545KWV010 CAP, CHAIN CASE PEEP HOLE 1
12 40546KWF900 CAP, SWINGARM END 2
13 43431K55970 ARM, RR. BRAKE STOPPER 1
14 43431K14930 ARM COMP., RR. BRAKE STOPPER 1
15 52101KZAW00 BOLT, SWINGARM PIVOT 1
16 52170K55970 SLIDER, CHAIN 1
17 52170K14900 SLIDER, CHAIN 1
18 52200K14930 SWINGARM SUB ASSY., RR. 1
19 52200K55970 SWINGARM SUB ASSY., RR. 1
20 90111162000 BOLT, FLANGE, 6MM 4
21 90302KBP900 NUT, SPECIAL, 6MM 2
22 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
23 9281210000 BOLT A, STOPPER ARM 1
24 94001060000S NUT, HEX., 6MM 2
25 94001080000S NUT, HEX., 8MM 1
26 9410108000 WASHER, PLAIN, 8MM 1
27 9411110000 WASHER, SPRING, 10MM 1
28 9420120150 PIN, SPLIT, 2.0X15 1
29 40530K55951 CHAIN, DRIVE(DAIDO) (DID420ADV-118LE) 1
30 40530K55953 CHAIN, DRIVE(TIDC) (TIDC420XR-118LE) 1
31 40530K55952 CHAIN, DRIVE(LGB) (LGB R420OR-118LE) 1
