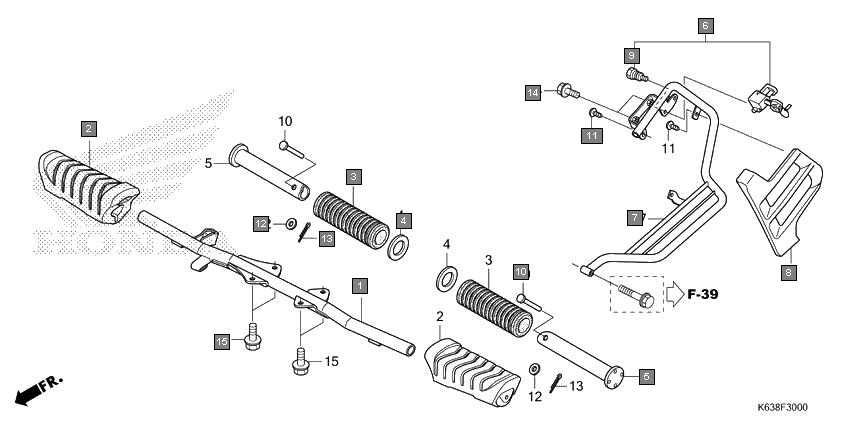

Motorcycles CD 110 Dream CB110C2K Frame Step
Ref.No. Part No. Description Oty
1 50610K14960 BAR COMP., STEP 1
2 50610K55970 BAR COMP., STEP 1
3 50661K14960 RUBBER, MAIN STEP 2
4 50710KTE910 RUBBER, PILLION STEP 2
5 50712405000 WASHER, PILLION STEP 2
6 50715405000 BAR, PILLION STEP 2
7 50730K14900 HOLDER SET, HELMET 1
8 51103K23A00 GUARD A, SARI 1
9 51103K55950 GUARD A, SARI 1
10 51104K14900 GUARD B, SARI 1
11 90107449000 BOLT, HELMET HOLDER SETTING 1
12 90131KWPF00 PIN, PILLION STEP 2
13 9390335220 SCREW, TAPPING, 5X12 2
14 9410106000 WASHER, PLAIN, 6MM 2
15 9420116120 PIN, SPLIT, 1.6X12 2
16 957010801407 BOLT, FLANGE, 8X14 2
17 957010801808 BOLT, FLANGE, 8X18 4
