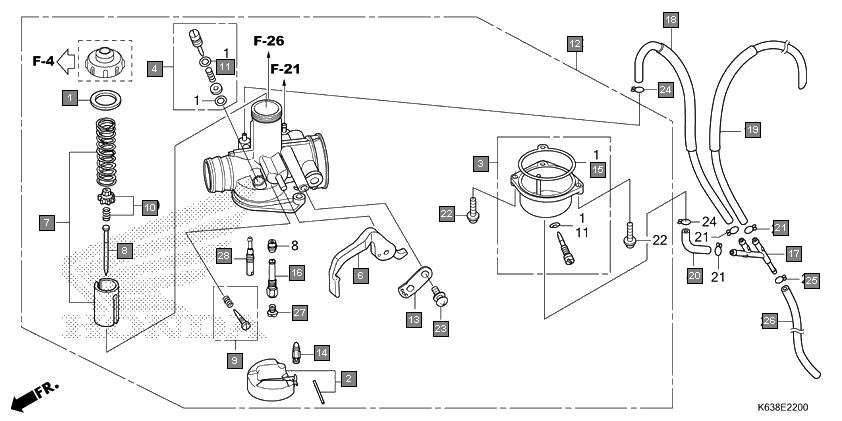

Motorcycles CD 110 Dream CB110C2K Engine Carburetor
Ref.No. Part No. Description Oty
1 16010K08901 GASKET SET 1
2 16013KRB901 FLOAT SET 1
3 16015K63D31 CHAMBER SET, FLOAT 1
4 16016KPWH01 SCREW SET 1
5 16019K14901 LEVER COMP., CHOKE 1
6 16022K63D31 VALVE SET, THROTTLE 1
7 16027K63D31 NEEDLE SET, JET 1
8 16028KYY901 SCREW SET 1
9 16037KPH901 PLATE SET, VALVE 1
10 16076KPL901 O-RING 2
11 16100K63D31 CARBURETOR ASSY.(PB7WK A) 1
12 16119KZAW01 PLATE, SETTING 1
13 16155KRS861 VALVE COMP., FLOAT 1
14 16163KWS901 GASKET, FLOAT CHAMBER 1
15 16165K23901 HOLDER, NEEDLE JET 1
16 16180K63D30 JOINT, FOUR WAY 1
17 16199K63D30 TUBE A, AIR VENT 1
18 16954K63D30 TUBE B, AIR VENT 1
19 16956K63D30 TUBE, DRAIN 1
20 90652KWPF00 CLIP, TUBE(B8) 3
21 938920401808 SCREW-WASHER, 4X18 2
22 938920501218 SCREW-WASHER, 5X12 1
23 9500202089 CLIP, TUBE(B8) 2
24 9500202659 CLIP, TUBE(B6.5) 1
25 950053532050 TUBE, 3.5X320(95005-35001-50M) 1
26 99101KSS0950 JET, MAIN, #95 1
27 99103KPH0350 JET, SLOW, #35 1
