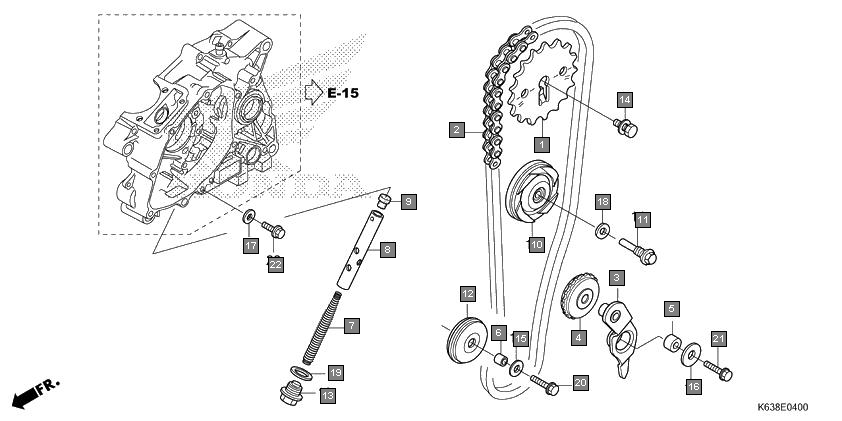

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 14321KYY900 | SPROCKET, CAM(32T) | 1 |
2 | 14401KWS901 | CHAIN, CAM(88LE-SH) | 1 |
3 | 14500KWS900 | ARM COMP., CAM CHAIN TENSIONER | 1 |
4 | 14502086000 | ROLLER, CAM CHAIN TENSIONER | 1 |
5 | 14531KWS900 | COLLAR, CAM CHAIN TENSIONER | 1 |
6 | 14532KWS900 | COLLAR, CAM CHAIN ROLLER | 1 |
7 | 14541GB4681 | SPRING, CAM CHAIN TENSIONER | 1 |
8 | 14550KWS900 | ROD COMP., TENSIONER PUSH | 1 |
9 | 14566086030 | HEAD, CAM CHAIN TENSIONER PUSH ROD | 1 |
10 | 14610KWB600 | ROLLER COMP., CAM CHAIN GUIDE | 1 |
11 | 14615KFL850 | PIN, GUIDE ROLLER | 1 |
12 | 14670KWS900 | ROLLER COMP., CAM CHAIN GUIDE | 1 |
13 | 90081035000 | BOLT, SEALING, 14MM | 1 |
14 | 90082KYY900 | BOLT, WASHER, 8X22 | 1 |
15 | 90401ZA0000 | WASHER, PLAIN, 6.5X15 | 1 |
16 | 90404KWB600 | WASHER, 8.5X26X2.3 | 1 |
17 | 90463ML7000 | WASHER, SEALING, 6.5MM | 1 |
18 | 90475KWB600 | WASHER, 8MM | 1 |
19 | 90544KF0000 | WASHER, SEALING, 14MM | 1 |
20 | 957010602500 | BOLT, FLANGE, 6X25 | 1 |
21 | 957010802500 | BOLT, FLANGE, 8X25 | 1 |
22 | 960010601400 | BOLT, FLANGE, 6X14 | 1 |
