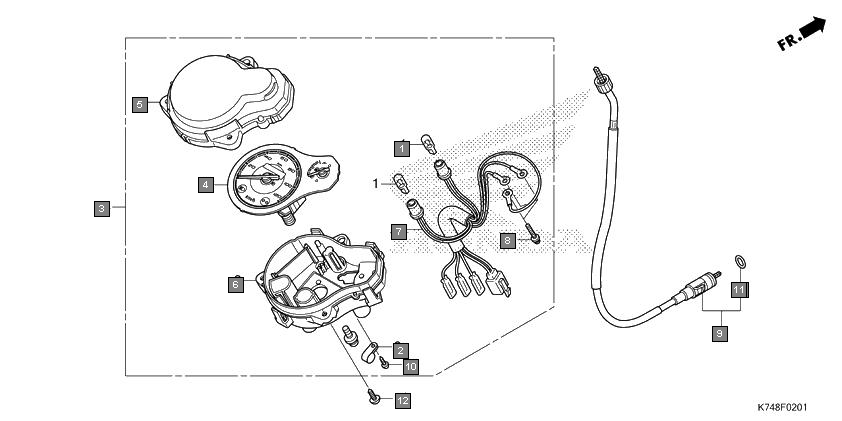

Scooters Navi NVA110K Frame Meter(nva110k)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 2
2 37121KV3008 CLAMP 1
3 37200K74N81 SPEEDOMETER ASSY.(KPH) 1
4 37210K74N81 METER COMP., SPEED & FUEL 1
5 37211K74N81 GLASS 1
6 37220K74N81 CASE ASSY., UNDER 1
7 37224K74N81 SOCKET COMP. 1
8 37305KE5008 SCREW-WASHER, 3X22 3
9 44830KTE912 CABLE COMP., SPEEDOMETER 1
10 90109MZ5008 SCREW, TAPPING, 4X14 1
11 91352671003 O-RING, 8.5X1.5(ARAI) 1
12 91352671004 O-RING, 8.5X1.5(NOK) 1
13 9390324410 SCREW, TAPPING, 4X16 3
