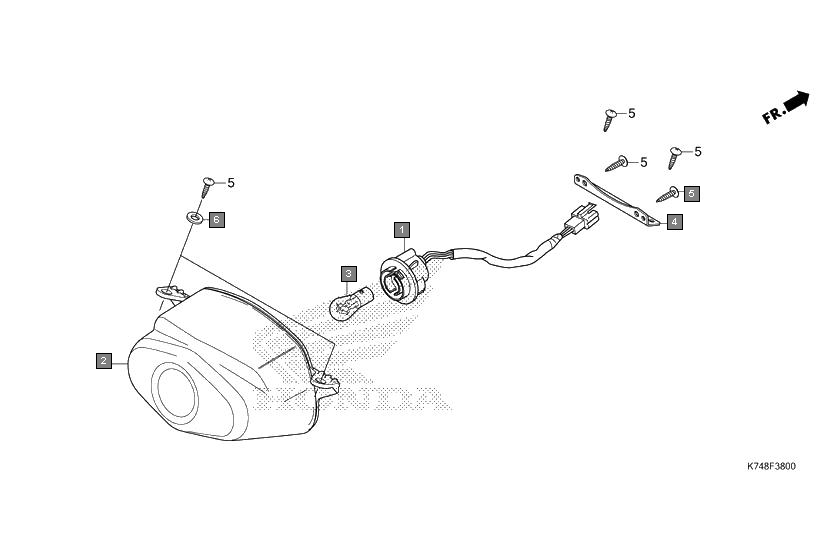

Scooters Navi NVA110K Frame Taillight
Ref.No. Part No. Description Oty
1 33703K74N01 SOCKET COMP., TAILLIGHT 1
2 33710KWF901 TAILLIGHT UNIT 1
3 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
4 77250KWF900 STAY, TAILLIGHT 1
5 9390324320 SCREW, TAPPING, 4X12 6
6 9410304800 WASHER, PLAIN, 4MM 2
