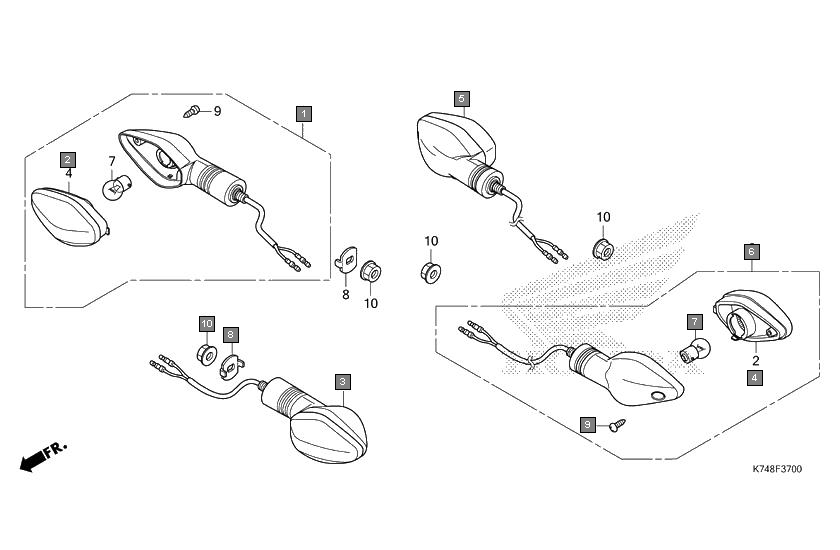

Scooters Navi NVA110K Frame Winker
Ref.No. Part No. Description Oty
1 33400K74N81 WINKER ASSY., R. FR.(12V 10W) 1
2 33403K23901 LENS COMP., R. (R. FR./L. RR.) 2
3 33450K23901 WINKER ASSY., L. FR.(12V 10W) 1
4 33453K23901 LENS COMP., L. (L. FR./R. RR.) 2
5 33600K74N01 WINKER ASSY., R. RR.(12V 10W) 1
6 33650K74N01 WINKER ASSY., L. RR.(12V 10W) 1
7 34904K23900 BULB, WINKER LIGHT(R10W) 4
8 61315GGJ700 STAY, WINKER 2
9 9390134380 SCREW, TAPPING, 4X12 4
10 9405010000 NUT, FLANGE, 10MM 4
