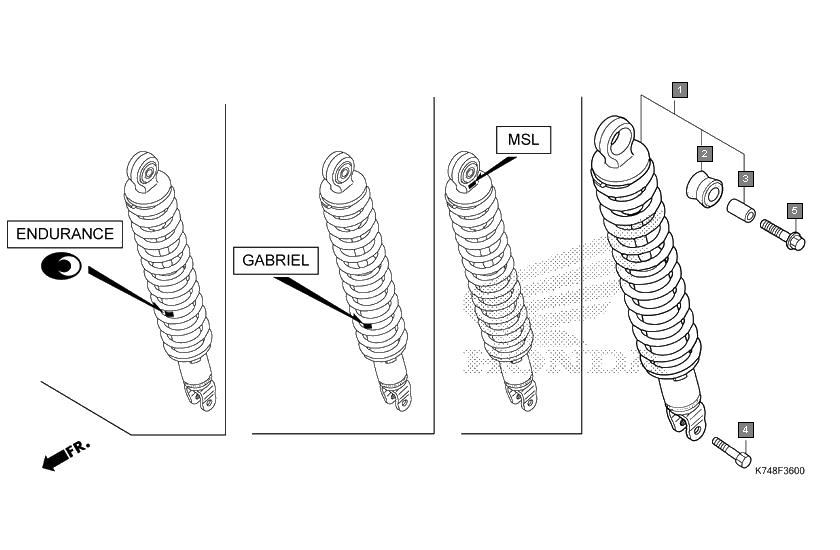

Scooters Navi NVA110K Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400K74N81 CUSHION ASSY., RR.(GABRIEL) 1
2 52489KWS901 BUSH, RUBBER(GABRIEL) 1
3 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
4 92201080320A BOLT, HEX., 8X32 1
5 958011003500 BOLT, FLANGE, 10X35 1
