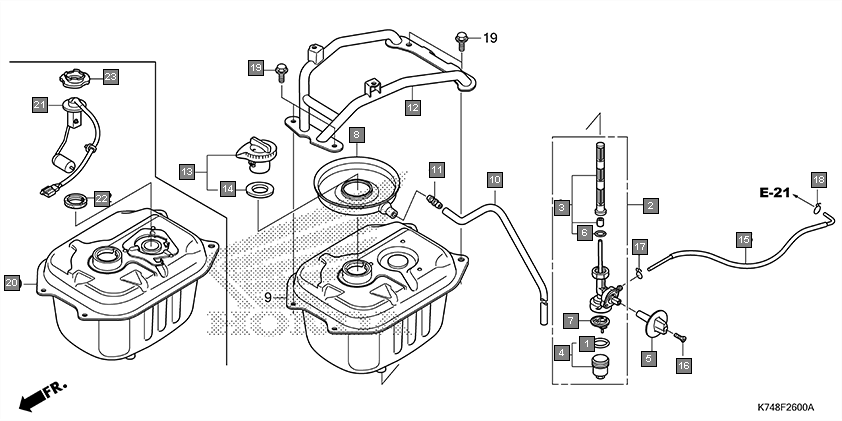

Scooters Navi NVA110K Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KWF901 COCK ASSY., FUEL 1
2 16955K74N00 LEVER, FUEL COCK 1
3 17505K74N00 TRAY, FUEL 1
4 17515K74N00 TUBE, FUEL DRAIN 1
5 17525KTP900 JOINT, FUEL TUBE 1
6 17550K74N20 PIPE COMP., SIDE COVER MOUNTING 1
7 17620KRP980 CAP COMP., FUEL FILLER 1
8 17632383831 PACKING, FUEL FILLER CAP 1
9 17683K74N00 TUBE COMP., FUEL 1
10 93500040300G SCREW, PAN, 4X30 1
11 9500202080 CLIP, TUBE(B8) 1
12 9500250000 CLIP, TUBE(C9) 1
13 957010601200 BOLT, FLANGE, 6X12 4
14 17510K74N80 TANK COMP., FUEL 1
15 37800K74N81 FUEL UNIT 1
16 37801GA7700 PACKING, BASE 1
17 37802GA7700 RETAINER, FUEL UNIT 1
