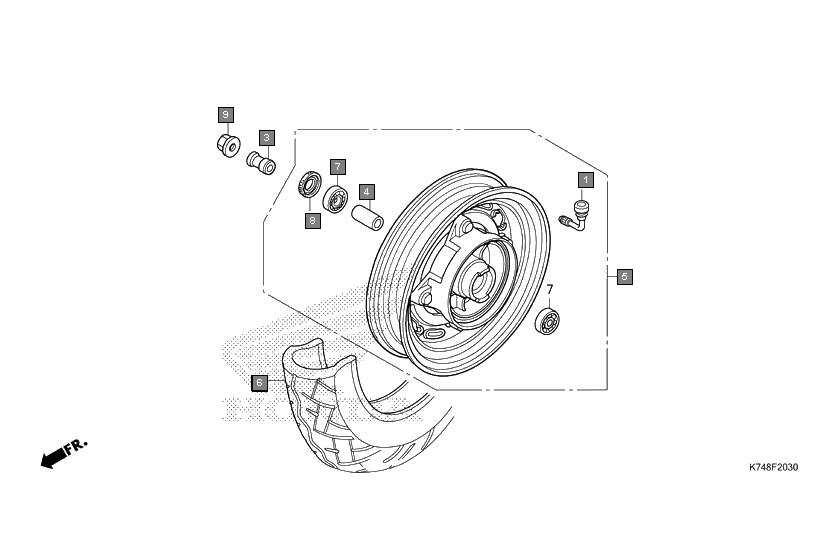

Scooters Navi NVA110K Frame Front wheel
Ref.No. Part No. Description Oty
1 42753K24G01 VALVE, RIM(ACCURA) 1
2 42753KWPE01 VALVE, RIM(TRITON) 1
3 44311K74N00 COLLAR, FR. WHEEL SIDE 1
4 44620KPL900 COLLAR, FR. AXLE DISTANCE 1
5 44650K74N20 WHEEL SUB ASSY., FR 1
6 44711KVTD02 TIRE, FR.(TVS)(90/90-12 54J) 1
7 44711KVTD01 TIRE, FR.(MRF)(90/90-12 54J) 1
8 44711K74N01 TIRE, FR.(CEAT)(90/90-12 54J) 1
9 90912KPL900 BEARING, RADIAL BALL, 6201U 2
10 91251KWP901 DUST SEAL, 20X32X5 1
11 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
