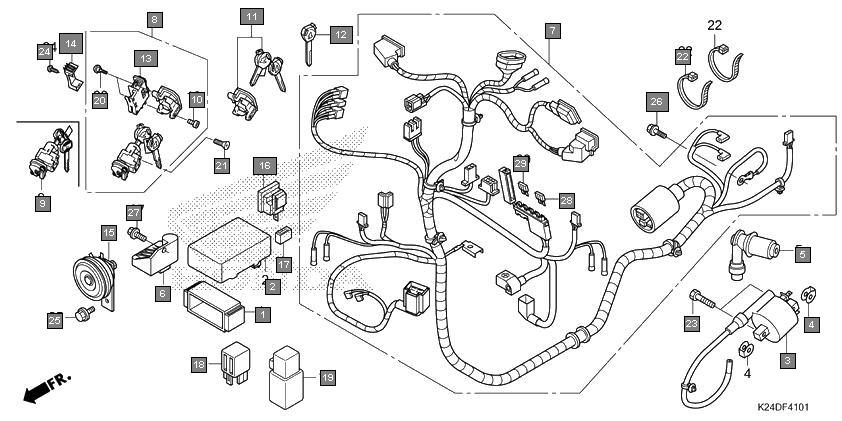

Scooters Activa125 SCV125K Frame Wire harness(scv125k)
Ref.No. Part No. Description Oty
1 30401KVE901 CUSHION, C.D.I. UNIT(DENSO) 1
2 30410K24H01 C.D.I. UNIT 1
3 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700K24921 CAP ASSY., NOISE SUPPRESSOR 1
6 31600KWPH01 RECTIFIER COMP., REGULATE 1
7 32100K24H00 HARNESS, WIRE 1
8 35010KWPH01 KEY SET(JAY USHIN) 1
9 35102KWPH01 SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) 1
10 35109KWPH01 BOLT, SOCKET, 5X8(JAY USHIN) 1
11 35110KWPH01 KEY, SHUTTER(JAY USHIN) 1
12 35121KWPH00 KEY, BLANK (JAY USHIN) 1
13 35190KWPH01 SWITCH ASSY., SEAT OPENER (JAY USHIN) 1
14 35191KWPH01 COVER, CABLE 1
15 38110KWP901 HORN COMP. 1
16 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
17 38306K38901 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
18 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
19 38506KPL900 SUSPENSION, STARTER RELAY 1
20 90101MT4000 SCREW, SCREEN SETTING 2
21 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
22 90657KRP901 CABLE, TIE(LONG) 2
23 92101060204J BOLT, HEX., 6X20 2
24 9390124320 SCREW, TAPPING, 4X12 1
25 957010601200 BOLT, FLANGE, 6X12 1
26 957010601208 BOLT, FLANGE, 6X12 1
27 957010601600 BOLT, FLANGE, 6X16 1
28 9820031000 FUSE, BLADE(10A) 2
29 9820031500 FUSE, BLADE(15A) 2
