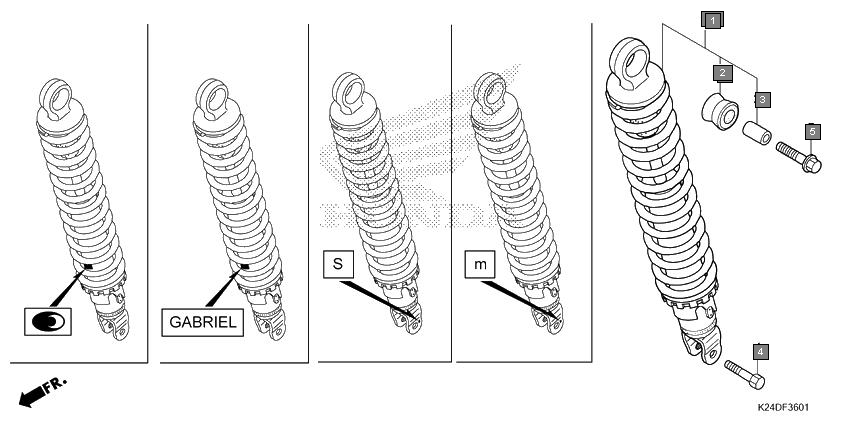

Scooters Activa125 SCV125K Frame Rear cushion(scv125k)
Ref.No. Part No. Description Oty
1 52400K24H21 CUSHION ASSY., RR.(GABRIEL) 1
2 52400K24H11 CUSHION ASSY., RR.(ENDURANCE) 1
3 52400K24H01 CUSHION ASSY., RR.(SHOWA) (S) 1
4 52400K24H02 CUSHION ASSY., RR.(SHOWA) (M) 1
5 52485GW3980 BUSH, RUBBER(SHOWA)(S) 1
6 52495K23902 BUSH, RUBBER(ENDURANCE) 1
7 52489KWS901 BUSH, RUBBER(GABRIEL) 1
8 52486GA7003 COLLAR, RUBBER BUSH(SHOWA)(MSL) 1
9 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 1
10 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
11 92201080320A BOLT, HEX., 8X32 1
12 958011003500 BOLT, FLANGE, 10X35 1
