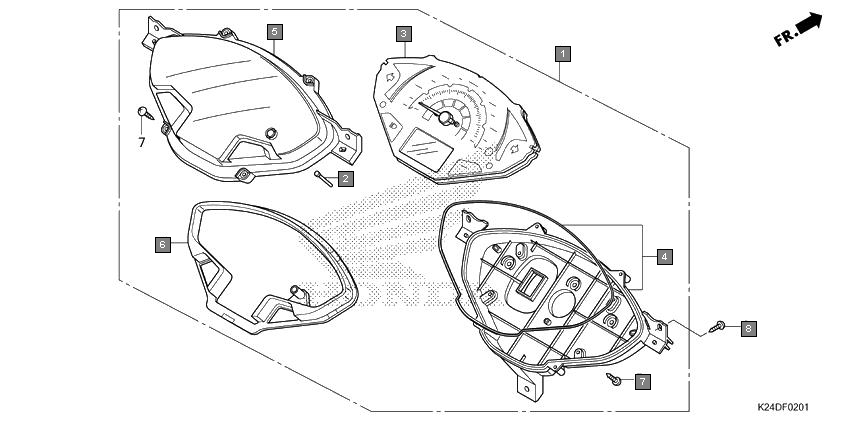

Scooters Activa125 SCV125K Frame Meter(scv125k)
Ref.No. Part No. Description Oty
1 37200K24H01 METER ASSY., COMBINATION(KPH) 1
2 37202K24H01 ROD, SWITCH EXTENSION 1
3 37210K24H01 METER ASSY., SPEED(KPH) 1
4 37212K24H01 CASE ASSY., UNDER 1
5 37213K24H01 LENS ASSY. 1
6 37302K24H01 REFLECTOR ASSY. 1
7 90101KY6008 SCREW, TAPPING, 3X14 8
8 9390325380 SCREW, TAPPING, 5X16 3
