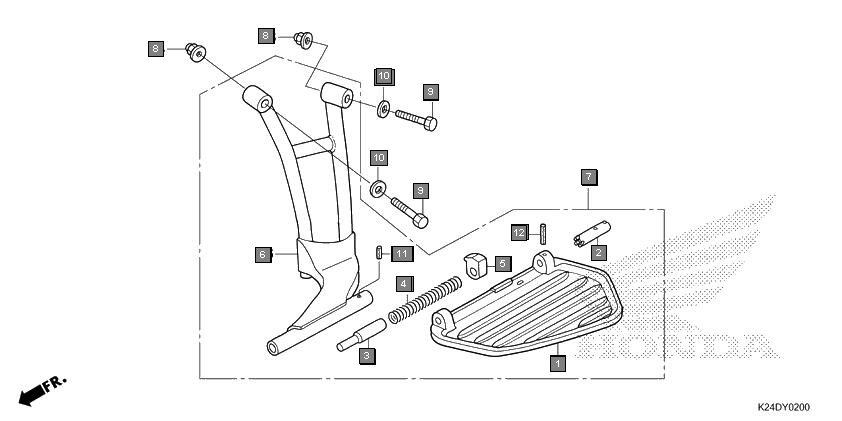

Scooters Activa125 SCV125K Frame Sari step set
Ref.No. Part No. Description Oty
1 83521KPL900 PLATE, SARI STEP 1
2 83522KPL900 PIN A, SARI STEP 1
3 83523KPL900 PIN B, SARI STEP 1
4 83524KPL900 SPRING, STEP RETURN 1
5 83526KPL900 STOPPER, STEP RUBBER 1
6 83530K24900 STEP COMP., SARI 1
7 83570K24900 STEP ASSY., SARI 1
8 90301KBW940 NUT, CAP, 8MM 2
9 92201080450A BOLT, HEX., 8X45 2
10 9410308800 WASHER, PLAIN, 8MM 2
11 9430530142 PIN, SPRING, 3X14 1
12 9430530282 PIN, SPRING, 3X28 1
