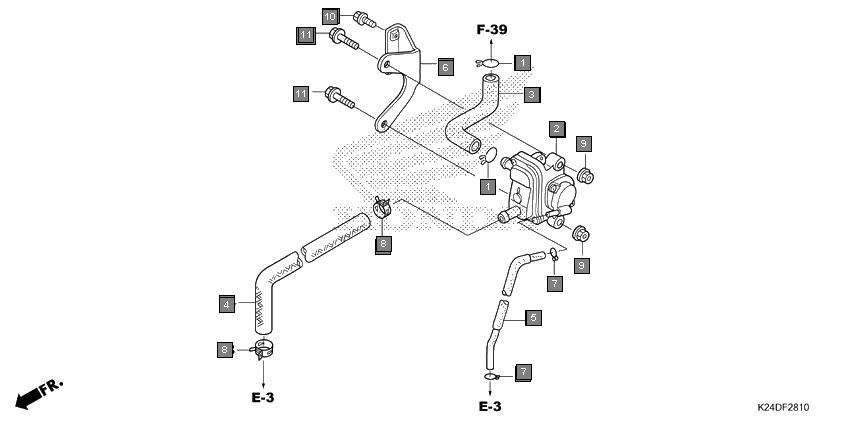

Scooters Activa125 SCV125K Frame Air suction valve
Ref.No. Part No. Description Oty
1 17316KWPE00 CLIP, BREATHER TUBE 2
2 18600KWP901 VALVE ASSY., AIR SUCTION 1
3 18651KPL840 TUBE, AIR SUCTION VALVE 1
4 18652KZK900 HOSE, AIR SUCTION VALVE 1
5 18653K24900 TUBE, AIR SUCTION VALVE (VACUUM) 1
6 50141K24900 STAY, AIR SUCTION VALVE 1
7 90651KWPF00 CLIP, TUBE(B7) 2
8 90682KWPF00 CLAMP, CANISTER HOSE 2
9 9405006000 NUT, FLANGE, 6MM 2
10 957010601208 BOLT, FLANGE, 6X12 2
11 957010602008 BOLT, FLANGE, 6X20 2
