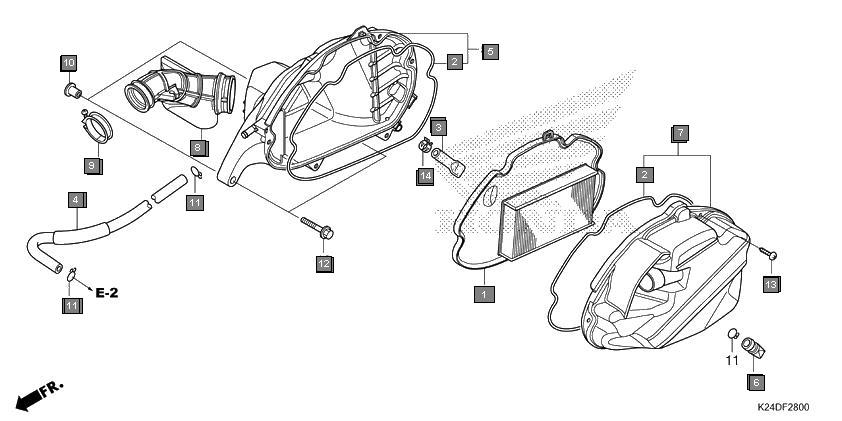

Scooters Activa125 SCV125K Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210K24901 ELEMENT COMP., AIR CLEANER 1
2 17213K24900 SEAL, AIR CLEANER 2
3 17216KTP900 TUBE, DRAIN 1
4 17218K24900 TUBE, BREATHER 1
5 17225K24G00 CASE SUB ASSY., AIR CLEANER 1
6 17234KCW871 TUBE, AIR CLEANER DRAIN 1
7 17245K24G00 COVER SUB ASSY., AIR CLEANER 1
8 17253K24G00 TUBE, AIR CLEANER CONNECTING 1
9 17254K74N00 BAND, AIR CLEANER CONNECTING TUBE(40) 1
10 50731KV3770 COLLAR, PILLION STEP SETTING 2
11 90653KWPF00 CLIP, TUBE(B12.5) 3
12 934040604007 BOLT-WASHER, 6X40 2
13 9390325480 SCREW, TAPPING, 5X20 6
14 950024120008 CLAMP, TUBE(D12) 1
