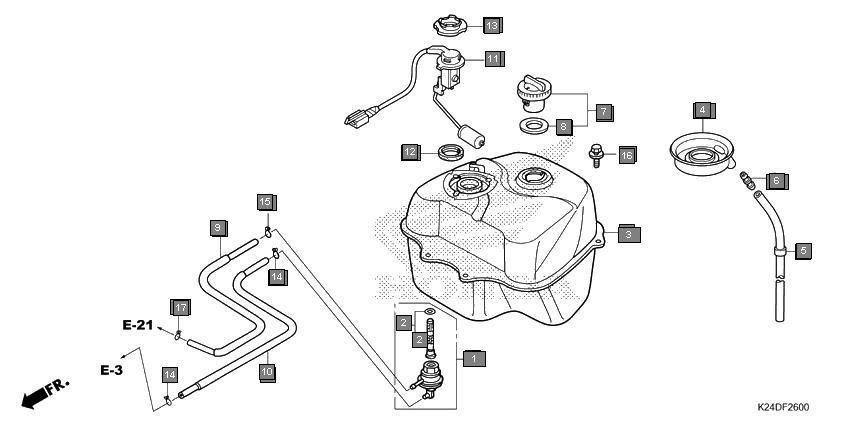

Scooters Activa125 SCV125K Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KRP981 COCK ASSY., FUEL 1
2 16952KRP980 SCREEN SET, FUEL STRAINER 1
3 17500KWP305 TANK COMP., FUEL 1
4 17505KWP900 TRAY, FUEL 1
5 17515KWP900 TUBE, FUEL DRAIN 1
6 17525KTP900 JOINT, FUEL TUBE 1
7 17620KRP980 CAP COMP., FUEL FILLER 1
8 17632383831 PACKING, FUEL FILLER CAP 1
9 17683K24900 TUBE COMP., FUEL 1
10 17684K24900 TUBE COMP., VACUUM 1
11 37800K24901 FUEL UNIT 1
12 37801GA7700 PACKING, BASE 1
13 37802GA7700 RETAINER, FUEL UNIT 1
14 90651KWPF00 CLIP, TUBE(B7) 2
15 90652KWPF00 CLIP, TUBE(B8) 1
16 934040601208 BOLT-WASHER, 6X12 2
17 9500250000 CLIP, TUBE(C9) 1
