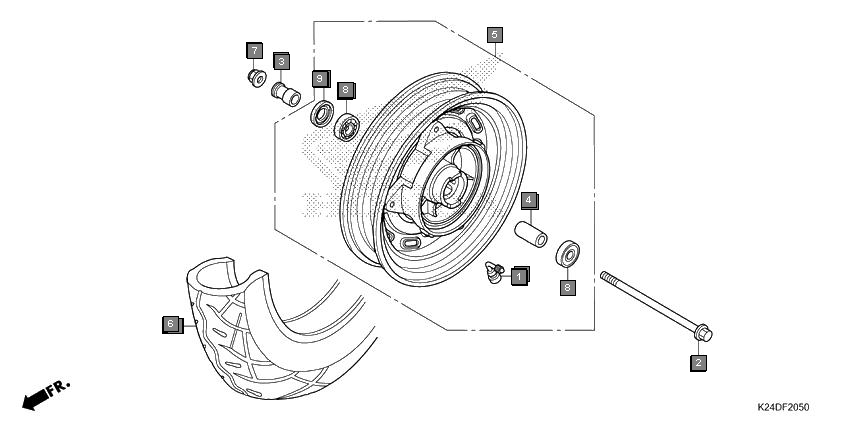

Scooters Activa125 SCV125K Frame Front wheel(scv125-id)
Ref.No. Part No. Description Oty
1 42753KWPE01 VALVE, RIM(TRITON) 1
2 42753K24G01 VALVE, RIM(ACCURA) 1
3 44301KTR700 AXLE, FR. WHEEL 1
4 44311KVT900 COLLAR, FR. WHEEL SIDE 1
5 44620KPL900 COLLAR, FR. AXLE DISTANCE 1
6 44650K24H00ZA WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
7 44711K74N01 TIRE, FR.(CEAT)(90/90-12 54J) 1
8 44711KVTD02 TIRE, FR.(TVS)(90/90-12 54J) 1
9 44711KVTD01 TIRE, FR.(MRF)(90/90-12 54J) 1
10 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
11 91052K24904 BEARING, RADIAL BALL(6201U L) (FAG) 2
12 91052K24905 BEARING, RADIAL BALL(6201U L) (NBC) 2
13 91251K24901 DUST SEAL, 20X32X5(JK PIONEER) 1
14 91252K24901 DUST SEAL, 20X32X5(ARAI) 1
