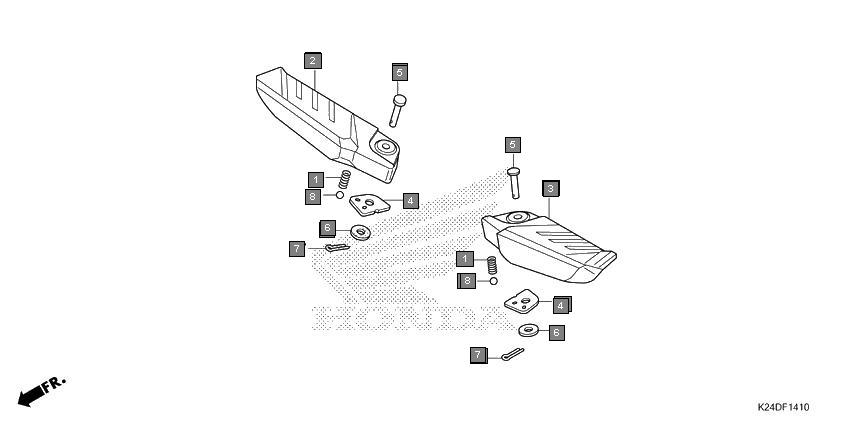

Scooters Activa125 SCV125K Frame Pillion step
Ref.No. Part No. Description Oty
1 28333300000 SPRING, KICK STARTER STOPPER 2
2 50711K24900 ARM, R. PILLION STEP 1
3 50712K24900 ARM, L. PILLION STEP 1
4 50718K24900 PLATE, PILLION STEP CLICK 2
5 90131KWPF00 PIN, PILLION STEP 2
6 9410106000 WASHER, PLAIN, 6MM 2
7 9420116150 PIN, SPLIT, 1.6X15 2
8 9621108000 BALL, STEEL, #8(1/4) 2
