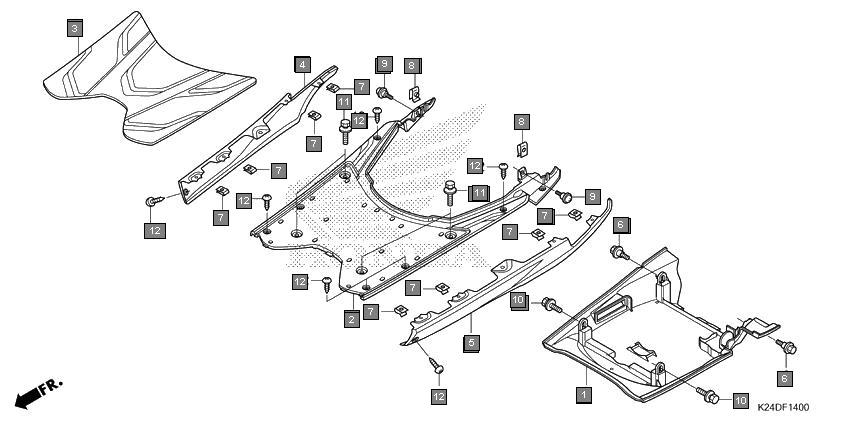

Scooters Activa125 SCV125K Frame Under cover/floor step
Ref.No. Part No. Description Oty
1 50621K24H00 COVER, UNDER 1
2 64310K24G00ZA STEP, FLOOR *NH1* BLACK 1
3 64315K24901 MAT, FLOOR 1
4 64320K24900ZZ COVER, R. SIDE 1
5 64330K24900ZZ COVER, L. SIDE 1
6 90111162000 BOLT, FLANGE, 6MM 2
7 90344KRB900 NUT, CLIP, 5MM 8
8 90344KRP900 NUT, CLIP, 5MM 2
9 91509GE2760 SCREW, PAN, 5X11.5 2
10 934040601208 BOLT-WASHER, 6X12 2
11 934040602008 BOLT-WASHER, 6X20 4
12 9390325380 SCREW, TAPPING, 5X16 10
