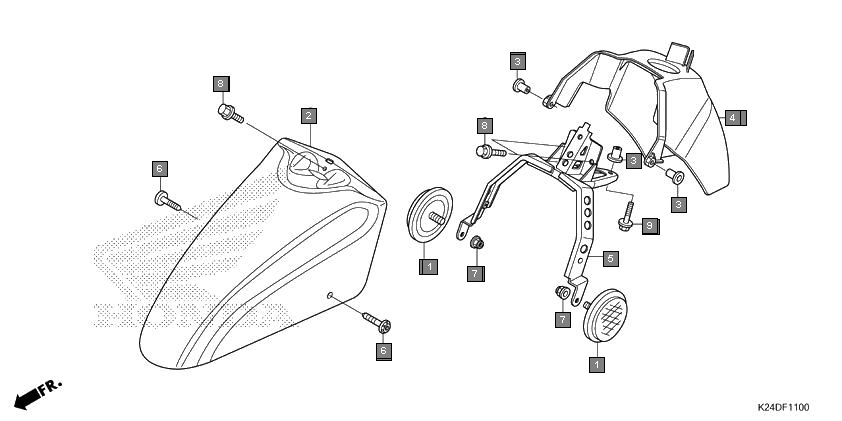

Scooters Activa125 SCV125K Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 61100K24900ZZ FENDER A, FR. 1
3 61103KRY900 COLLAR A, FR. FENDER 3
4 61120K24G00ZA FENDER B, FR. *NH1* BLACK 1
5 61300K24900 STAY COMP., FR. FENDER 1
6 90113KVT901 BOLT, SPECIAL HEX., 6X20 2
7 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
8 957010601208 BOLT, FLANGE, 6X12 3
9 957010602008 BOLT, FLANGE, 6X20 1
