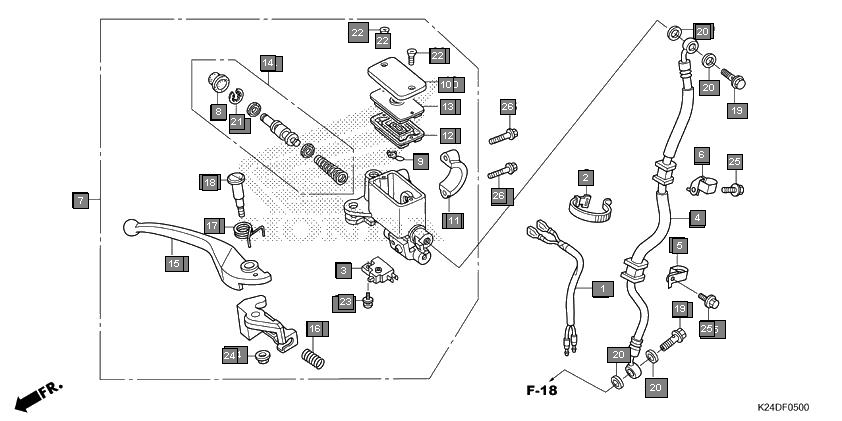

Scooters Activa125 SCV125K Frame Fr. brake master cylinder
Ref.No. Part No. Description Oty
1 32102KVT960 SUB CORD, FR. STOP SWITCH 1
2 32161KSP920 BAND B1, WIRE 1
3 35340KSPB51 SWITCH ASSY., FR. STOP 1
4 45126K24G11 HOSE COMP., FR. BRAKE 1
5 45156K24G10 CLAMPER COMP. A, BRAKE HOSE 1
6 45157K24G10 CLAMPER B, BRAKE HOSE 1
7 45500K24G11 CYLINDER ASSY., FR. BRAKE MASTER(NISSIN) 1
8 45504410003 BOOT COMP. 1
9 45512MA6006 PROTECTOR 1
10 45513HA2006 CAP, MASTER CYLINDER 1
11 45517166006 HOLDER, MASTER CYLINDER 1
12 45520GE2006 DIAPHRAGM 1
13 45521K21901 PLATE, DIAPHRAGM 1
14 45530K03M61 CYLINDER SET, MASTER(NISSIN) 1
15 53175KVGA21 LEVER, R. STEERING HANDLE 1
16 53198GBL870 SPRING, RETURN 1
17 53199KVG910 SPRING, BRAKE LEVER RETURN 1
18 90114K44V01 BOLT, HANDLE LEVER 1
19 90145GAZ981 BOLT, OIL, 10X22 2
20 90545300000 WASHER, OIL BOLT 4
21 90651K03M61 CIRCLIP, INTERNAL, 18.8 1
22 93600040121G SCREW, FLAT, 4X12 2
23 938930401217 SCREW-WASHER, 4X12 1
24 9405006000 NUT, FLANGE, 6MM 1
25 957010601200 BOLT, FLANGE, 6X12 2
26 960010602207 BOLT, FLANGE, 6X22 2
