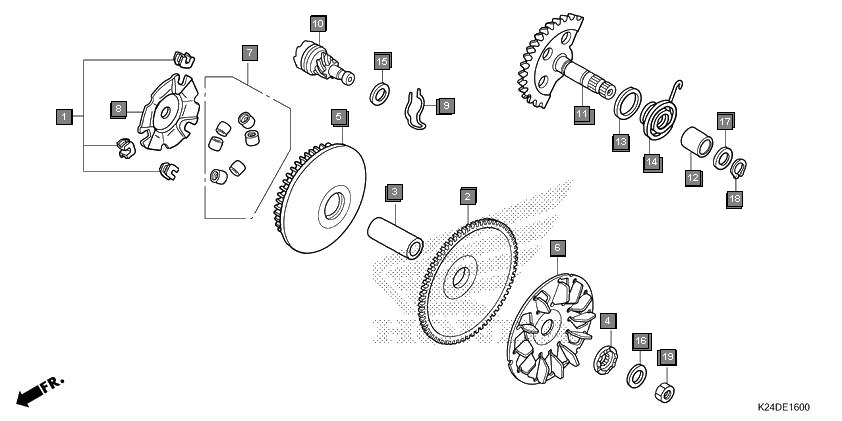

Scooters Activa125 SCV125K Engine Drive face
Ref.No. Part No. Description Oty
1 22011K24900 PIECE SET, SLIDE 1
2 22102K24900 FACE, DRIVE(70T) 1
3 22105KWPD00 BOSS, DRIVE FACE 1
4 22109KZL840 RATCHET, STARTER 1
5 22110K24900 FACE COMP., MOVABLE DRIVE 1
6 22113KWPD00 FIN, DRIVE FACE 1
7 22123KWN710 ROLLER SET, WEIGHT 1
8 22131K24900 PLATE, RAMP 1
9 28223KZL840 SPRING, KICK DRIVEN GEAR 1
10 28230KZL840 GEAR COMP., KICK DRIVEN(7T) 1
11 28250K24H00 SPINDLE COMP., KICK STARTER (31T) 1
12 28253KVT900 BUSH, KICK SPINDLE 1
13 28255KPL900 COLLAR, KICK BOSS 1
14 28281K32700 SPRING, KICK RETURN 1
15 90412KZL840 WASHER, THRUST, 10MM 1
16 90426KVB900 WASHER, SPECIAL, 14MM 1
17 90451KVT900 WASHER, KICK SPINDLE 1
18 90608KVT901 CIRCLIP, EXTERNAL, 16MM 1
19 9403014200 NUT, HEX., 14MM 1
