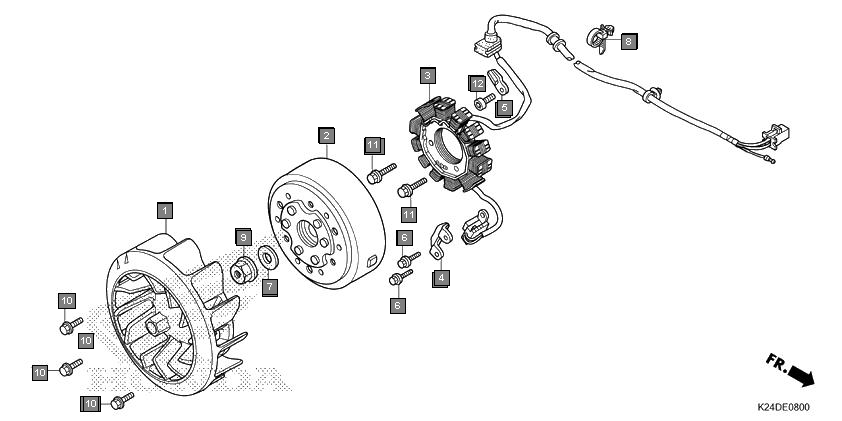

Scooters Activa125 SCV125K Engine Generator
Ref.No. Part No. Description Oty
1 19510K24900 FAN COMP., COOLING 1
2 31110KWPG01 FLYWHEEL COMP. 1
3 31120K24G01 STATOR COMP.(DENSO) 1
4 32907GGC900 CLIP, A.C. GENERATOR CORD 1
5 32976107010 CLAMPER, WIRE HARNESS 1
6 90002KGH900 BOLT, FLANGE, 5X14 2
7 90410GCC000 WASHER, 10MM 1
8 90672KPL901 CLIP, BODY 1
9 9405010000 NUT, FLANGE, 10MM 1
10 957010601600 BOLT, FLANGE, 6X16 3
11 960010602200 BOLT, FLANGE, 6X22 2
12 966000601600 BOLT, SOCKET, 6X16 1
