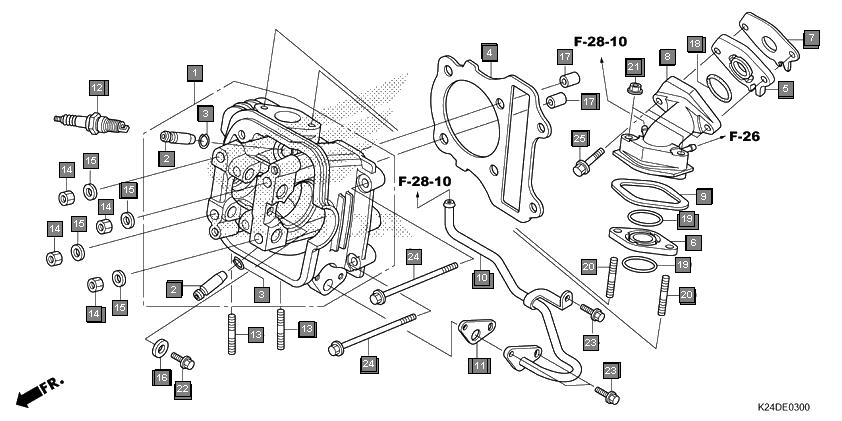

Scooters Activa125 SCV125K Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200K24900 HEAD COMP., CYLINDER 1
2 12204KWPP00 GUIDE, VALVE(O.S.) 2
3 12206KPL900 CLIP, VALVE GUIDE 2
4 12252K24900 GASKET, CYLINDER HEAD(O.S.) (0.75/1.00) 1
5 12251K24901 GASKET, CYLINDER HEAD 1
6 16211KWP900 INSULATOR A, CARBURETOR 1
7 16212KWP900 INSULATOR B, CARBURETOR 1
8 16229KRP601 GASKET A, CARBURETOR INSULATOR 1
9 17110KWP900 PIPE COMP., IN. 1
10 17113KWP900 RUBBER, IN. PIPE SEAL 1
11 18640KWP900 PIPE COMP., AIR FEED 1
12 18645KVY900 GASKET, AIR FEED PIPE 1
13 31917KWPD01 PLUG, SPARK(MR7C-9N)(NGK) 1
14 90004KGF910 BOLT, STUD, 7X17 2
15 90201GCC000 NUT, HEX., 7MM 4
16 90401GCC000 WASHER, 7.2X16X2.5 4
17 90402KWP900 WASHER, 6MM 1
18 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
19 91304KWP900 O-RING, 25X2.4 1
20 91308GFM900 O-RING, 25.5X1.9 2
21 92900060350B BOLT, STUD, 6X35 2
22 9405006000 NUT, FLANGE, 6MM 2
23 957010601400 BOLT, FLANGE, 6X14 1
24 957010601800 BOLT, FLANGE, 6X18 3
25 957010610000 BOLT, FLANGE, 6X100 2
26 960010602800 BOLT, FLANGE, 6X28 2
