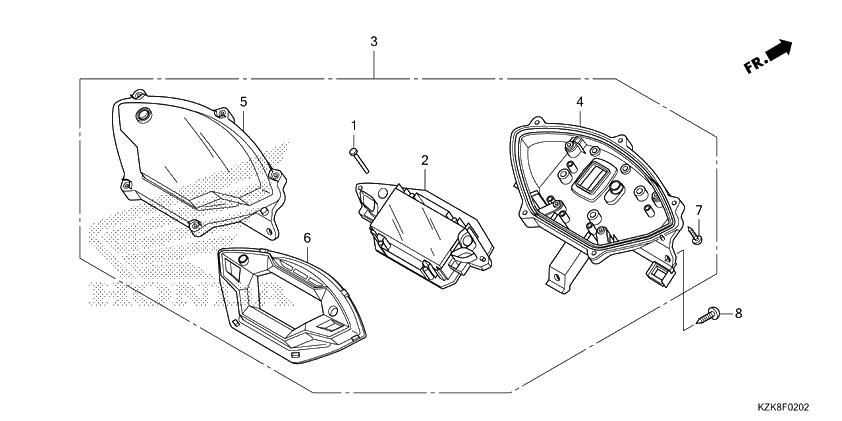

Scooters Dio SCV110FK Frame Meter(3)
Ref.No. Part No. Description Oty
1 37113KZKE11 KEY, TOP 1
2 37130KZKE11 METER COMP., LCD(KPH) 1
3 37200KZKE11 METER ASSY., COMBINATION(KPH) 1
4 37212KZKE11 CASE ASSY., UNDER 1
5 37213KZKE11 LENS ASSY. 1
6 37302KZKE11 REFLECTOR ASSY. 1
7 9390322480 SCREW, TAPPING, 3X16 10
8 9390325380 SCREW, TAPPING, 5X16 3
