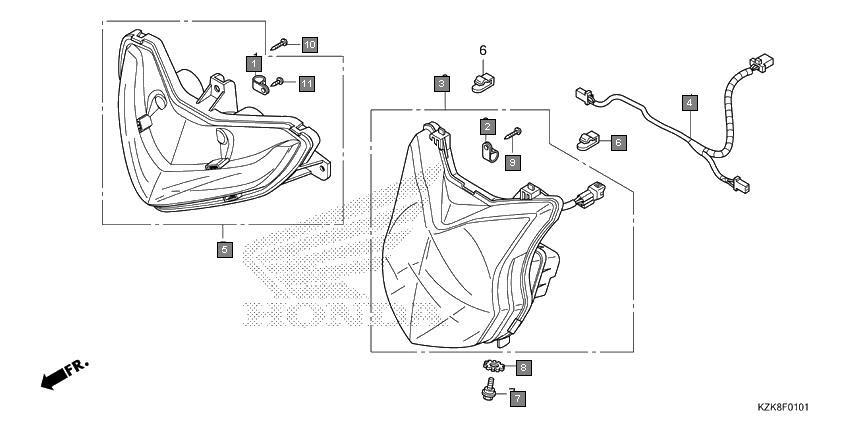

Scooters Dio SCV110FK Frame Headlight(scv110fk/fbk)
Ref.No. Part No. Description Oty
1 32920KVT901 CLIP A, HARNESS 1
2 32920KZKE01 CLIP, HARNESS 1
3 33110KZKE01 HEADLIGHT UNIT 1
4 33120KZKE01 SUB CORD, HEADLIGHT 1
5 33180KZKD21 LIGHT ASSY., POSITION 1
6 53209GAH000 CLIP, HEADLIGHT 2
7 90103KVH900 BOLT, ADJUSTER 2
8 90307GW3980 WASHER, LOCK, 6MM 2
9 9390132310 SCREW, TAPPING, 3X12 1
10 9390324410 SCREW, TAPPING, 4X16 3
11 9391314120 SCREW, TAPPING, 4X10 1
