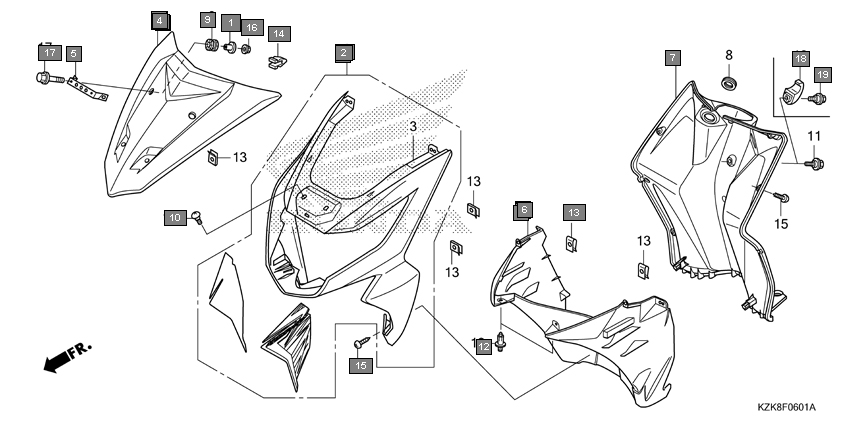

Scooters Dio SCV110FK Frame Front cover(2)
Ref.No. Part No. Description Oty
1 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
2 64200KZKE10ZC COVER SET, FR.(WL) *TYPE2* 1
3 64200KZKD21ZD COVER SET, FR.(WL) 1
4 64200KZKD21ZA COVER SET, FR.(WL) *TYPE4* 1
5 64200KZKD21ZB COVER SET, FR.(WL) *TYPE4* 1
6 64200KZKD21ZC COVER SET, FR.(WL) *TYPE4*...................... 1
7 64200KZKE10ZA COVER SET, FR.(WL) *TYPE3* 1
8 64200KZKE10ZB COVER SET, FR.(WL) *TYPE1* 1
9 64301KZKD20ZB COVER, FR. TOP VIBRANT ORANGE *YR250* 1
10 64301KZKD20ZC COVER, FR. TOP SPORTS RED *R321* 1
11 64301KZKD20ZA COVER, FR. TOPPEARL SPORTS YELLOW *Y206P* 1
12 64301KZKD20ZF COVER, FR. TOP *Y230M* DAZZLE YELLOW METALLIC 1
13 64301KZKD20ZE COVER, FR. TOPCANDY JAZZY BLUE *B221C* 1
14 64301KZKD20ZH COVER, FR. TOP *NHB05P* PEARL IGNEOUS BLACK 1
15 64301KZKD20ZJ COVER, FR. TOP *GY155M* MAT MARSHAL GREEN METALLIC 1
16 64303KZKD20 STAY, FR. NUMBER PLATE 1
17 64305KZKD20ZE COVER, FR. LOWER LOMOND BLUE R *B230R* 1
18 64305KZKD20ZB COVER, FR. LOWER TITONIA ORANGE R *YR350R* 1
19 64305KZKD20ZA COVER, FR. LOWER CITRIC YELLOW R *Y226R* 1
20 64305KZKD20ZG COVER, FR. LOWER *G210R* RANGER GREEN R 1
21 64305KZKD20ZF COVER, FR. LOWER *NHB69R* ORCUS GRAY R 1
22 64305KZKD20ZC COVER, FR. LOWER PATRIOT RED *R232* 1
23 81131KZKE00ZA COVER, INNER *NH1* BLACK 1
24 84703425000 RUBBER, TAILLIGHT MOUNTING 2
25 90109KTL740 BOLT, FAIRING SETTING 2
26 90116SP0003 CLIP, BUMPER SEAL 2
27 90344KRP900 NUT, CLIP, 5MM 8
28 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 1
29 9390325380 SCREW, TAPPING, 5X16 12
30 9405006080 NUT, FLANGE, 6MM 2
31 957010602500 BOLT, FLANGE, 6X25 2
32 81132KWPH00ZA HOOK, LUGGAGE 1
33 90107KVB900 BOLT, SPECIAL, 6MM 1
