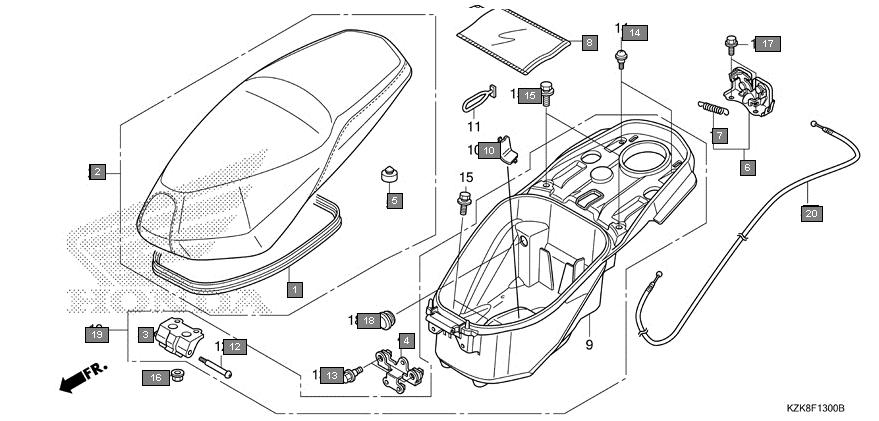

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 77115KZK900 | RUBBER, SEAL | 1 |
| 2 | 77200KZKD41ZA | SEAT COMP., DOUBLE(VARROC) *TYPE1* | 1 |
| 3 | 77200KZKF01ZA | SEAT COMP., DOUBLE *TYPE1* | 1 |
| 4 | 77201KWPG30 | HINGE, SEAT | 1 |
| 5 | 77203KWPH00 | STAY, HOOK LUGGAGE | 1 |
| 6 | 77206KG8900 | RUBBER, SEAT SETTING | 2 |
| 7 | 77235K86D00 | CATCH COMP., SEAT | 1 |
| 8 | 77234K86D00 | SPRING, SEAT LOCK | 1 |
| 9 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 10 | 81255KZK900 | COVER, CARBURETOR MAINTENANCE | 1 |
| 11 | 90105KTP900 | PIN, HINGE | 1 |
| 12 | 90112KRP900 | BOLT, FLANGE, 6X18 | 2 |
| 13 | 91509GE2760 | SCREW, PAN, 5X11.5 | 2 |
| 14 | 934040601207 | BOLT-WASHER, 6X12 | 4 |
| 15 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 16 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
| 17 | 90862KWPG00 | PLUG, END | 1 |
| 18 | 81260KZKD20 | BOX ASSY., LUGGAGE | 1 |
| 19 | 77240KWPH12 | CABLE COMP., SEAT LOCK(SEL) | 1 |
| 20 | 77240KWPH01 | CABLE COMP., SEAT LOCK(HI-LEX) | 1 |
