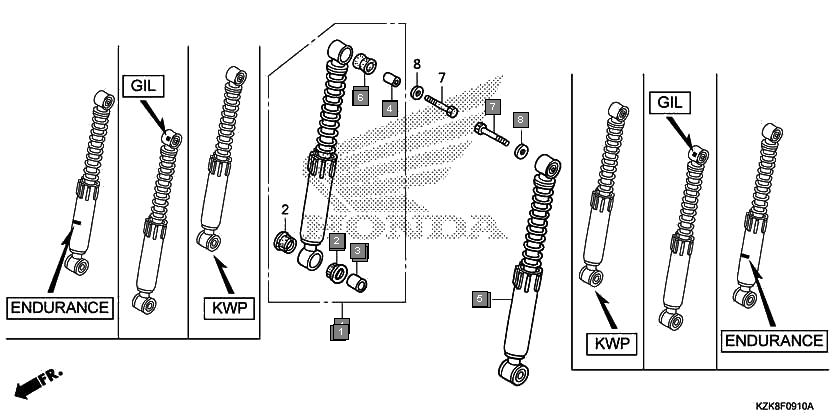

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 51400KWP901 | CUSHION ASSY., R. FR.(SHOWA)(KWP) | 1 |
2 | 51400KWPD01 | CUSHION ASSY., R. FR.(ENDURANCE) | 1 |
3 | 51400KWPH01 | CUSHION ASSY., R. FR.(GABRIEL)(GIL) | 1 |
4 | 51413GC8003 | BUSH, FR. CUSHION UNDER(SHOWA)(KWP) | 4 |
5 | 51413KPL902 | BUSH, FR. CUSHION UNDER(GABRIEL) | 4 |
6 | 51413KWPD01 | BUSH, FR. CUSHION UNDER(ENDURANCE) | 4 |
7 | 51486KPL903 | COLLAR, RUBBER BUSH(GABRIEL)(GIL) | 2 |
8 | 51487KWPD01 | COLLAR, RUBBER BUSH(B)(ENDURANCE) | 2 |
9 | 51486GC8003 | COLLAR, RUBBER BUSH(SHOWA)(KWP) | 2 |
10 | 52486KPL903 | COLLAR, RUBBER BUSH(GABRIEL)(GIL) | 2 |
11 | 51486KWPD01 | COLLAR, RUBBER BUSH(A)(ENDURANCE) | 2 |
12 | 51486KRP981 | COLLAR, CUSHION RUBBER BUSH(SHOWA)(KWP) | 2 |
13 | 51500KWP901 | CUSHION ASSY., L. FR.(SHOWA) | 1 |
14 | 51500KWPD01 | CUSHION ASSY., L. FR.(ENDURANCE) | 1 |
15 | 51500KWPH01 | CUSHION ASSY., L. FR.(GABRIEL)(GIL) | 1 |
16 | 52489KPL902 | BUSH, RUBBER(GABRIEL)(GIL) | 2 |
17 | 52489331003 | RUBBER A, JOINT(SHOWA)(KWP) | 2 |
18 | 51489KWPD01 | BUSH, FR. CUSHION UPPER(ENDURANCE) | 2 |
19 | 90121KPL900 | BOLT, HEX., 8X32 | 2 |
20 | 90443KPL900 | WASHER, SPECIAL, 8MM | 2 |
