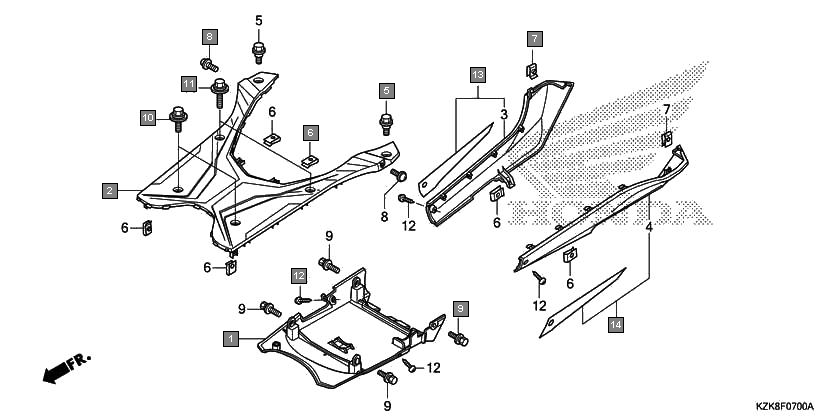

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50621KZK900 | COVER, UNDER | 1 |
| 2 | 64310KZKD20ZA | STEP, FLOOR BLACK*NH1* | 1 |
| 3 | 90111KWP900 | BOLT, INNER COVER | 2 |
| 4 | 90344KRP900 | NUT, CLIP, 5MM | 6 |
| 5 | 90677KANT00 | NUT, CLIP, 5MM | 2 |
| 6 | 91509GE2760 | SCREW, PAN, 5X11.5 | 2 |
| 7 | 934040601607 | BOLT-WASHER, 6X16 | 4 |
| 8 | 934040602507 | BOLT-WASHER, 6X25 | 2 |
| 9 | 934040603207 | BOLT-WASHER, 6X32 | 2 |
| 10 | 9390325380 | SCREW, TAPPING, 5X16 | 4 |
| 11 | 64400KZKE10ZA | COVER SET, R. FLOOR SIDE(WL) *TYPE3* | 1 |
| 12 | 64400KZKD21ZD | COVER SET, R. FLOOR SIDE(WL) | 1 |
| 13 | 64400KZKD21ZA | COVER SET, R. FLOOR SIDE(WL) | 1 |
| 14 | 64400KZKD21ZC | COVER SET, R. FLOOR SIDE(WL) *TYPE4*...................... | 1 |
| 15 | 64400KZKE10ZB | COVER SET, R. FLOOR SIDE(WL) *TYPE1* | 1 |
| 16 | 64400KZKE10ZC | COVER SET, R. FLOOR SIDE(WL) *TYPE2* | 1 |
| 17 | 64400KZKD21ZB | COVER SET, R. FLOOR SIDE(WL) | 1 |
| 18 | 64500KZKD21ZA | COVER SET, L. FLOOR SIDE(WL) | 1 |
| 19 | 64500KZKD21ZC | COVER SET, L. FLOOR SIDE(WL) *TYPE4*...................... | 1 |
| 20 | 64500KZKE10ZC | COVER SET, L. FLOOR SIDE(WL) *TYPE2* | 1 |
| 21 | 64500KZKD21ZD | COVER SET, L. FLOOR SIDE(WL) *TYPE4*...................... | 1 |
| 22 | 64500KZKE10ZA | COVER SET, L. FLOOR SIDE(WL) *TYPE3* | 1 |
| 23 | 64500KZKD21ZB | COVER SET, L. FLOOR SIDE(WL) | 1 |
| 24 | 64500KZKE10ZB | COVER SET, L. FLOOR SIDE(WL) *TYPE1* | 1 |
