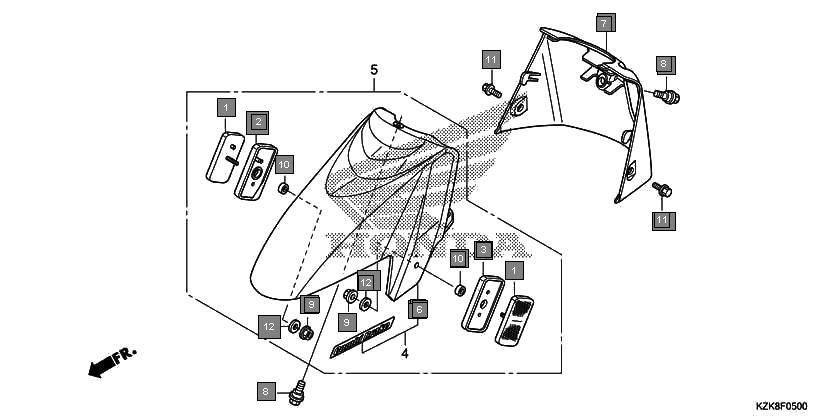

Scooters Dio SCV110FK Frame Front fender
Ref.No. Part No. Description Oty
1 33740KZK951 REFLECTOR, FR. SIDE REFLEX 2
2 33762KZK950 MOUNT, R. SIDE REFLECTOR 1
3 33862KZK950 MOUNT, L. SIDE REFLECTOR 1
4 61000KZKE10ZD FENDER SET, FR.(WL) *TYPE2* 1
5 61000KZKE10ZC FENDER SET, FR.(WL) *TYPE1* 1
6 61000KZKD20ZB FENDER SET, FR.(WL) *TYPE2* 1
7 61000KZKE10ZB FENDER SET, FR.(WL) *TYPE3* 1
8 61000KZKD20ZA FENDER SET, FR.(WL) *TYPE3* 1
9 61000KZKD20ZC FENDER SET, FR.(WL) *TYPE1* 1
10 61110KZKD20ZA FENDER B, FR. *NH1* BLACK 1
11 90111KPL900 BOLT, INNER COVER 2
12 90301KWN901 NUT, U, 5MM 2
13 90312KZK950 COLLAR, 9.5X5.5 2
14 934040601207 BOLT-WASHER, 6X12 2
15 9410305800 WASHER, PLAIN, 5MM 2
