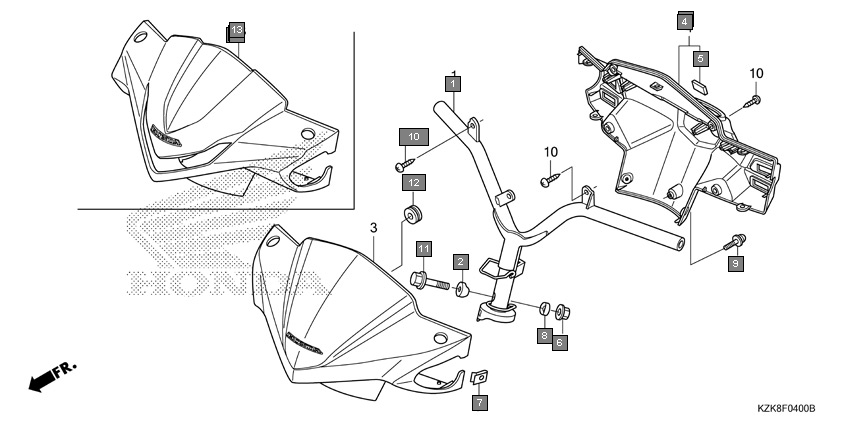

Scooters Dio SCV110FK Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KZKE00 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53250KZKD20ZA COVER COMP., RR. HANDLE(WL) BLACK*NH1* 1
4 53250KZKE10ZA COVER COMP., RR. HANDLE *NH1* BLACK 1
5 86150KWS601 EMBLEM, PRODUCT(SJS) 1
6 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
7 90344KTE910 NUT, CLIP, 4MM 2
8 90502KWP900 COLLAR B, HANDLE SETTING 1
9 938910501607 SCREW-WASHER, 5X16 1
10 9390334480 SCREW, TAPPING, 4X16 8
11 958011005508 BOLT, FLANGE, 10X55 1
12 64216GJ2730 RUBBER, SCREEN SETTING 1
13 53200KZKE10ZD COVER SET, FR. HANDLE(WL) *TYPE2* 1
14 53200KZKD20ZD COVER SET, FR. HANDLE(WL) *TYPE2* 1
15 53200KZKD20ZC COVER SET, FR. HANDLE(WL) *TYPE3* 1
16 53200KZKD20ZE COVER SET, FR. HANDLE(WL) *TYPE1* 1
17 53200KZKE10ZC COVER SET, FR. HANDLE(WL) *TYPE1* 1
18 53200KZKE10ZB COVER SET, FR. HANDLE(WL) *TYPE3* 1
19 53200KZKD20ZB COVER SET, FR. HANDLE(WL) *TYPE4* 1
