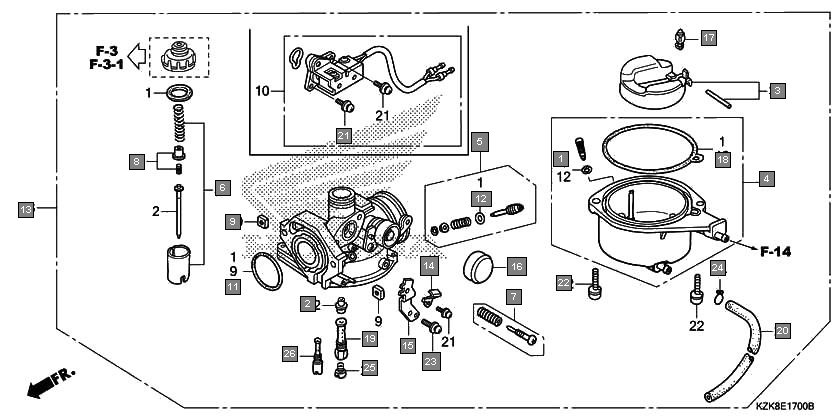

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16010K24901 | GASKET SET | 1 |
| 2 | 16012KWPE01 | NEEDLE SET, JET | 1 |
| 3 | 16013KRB901 | FLOAT SET | 1 |
| 4 | 16015K24901 | CHAMBER SET, FLOAT | 1 |
| 5 | 16016KPH901 | SCREW SET | 1 |
| 6 | 16022KWPE01 | VALVE SET, THROTTLE | 1 |
| 7 | 16028KPL901 | SCREW SET | 1 |
| 8 | 16037KRS601 | PLATE SET, VALVE | 1 |
| 9 | 16041KPL901 | NUT SET, SQUARE | 1 |
| 10 | 16075KPL901 | O-RING | 1 |
| 11 | 16076KPL901 | O-RING | 2 |
| 12 | 16100KZKD21 | CARBURETOR ASSY.(5TJ A) | 1 |
| 13 | 16119KPL901 | PLATE, STAY | 1 |
| 14 | 16119KWP901 | STAY, WIRE | 1 |
| 15 | 16148KPL901 | CAP, CHOKE DUST | 1 |
| 16 | 16155KPL901 | VALVE COMP., FLOAT | 1 |
| 17 | 16163KWS901 | GASKET, FLOAT CHAMBER | 1 |
| 18 | 16165KVTD01 | HOLDER, NEEDLE JET | 1 |
| 19 | 16199KZK901 | TUBE, OVERFLOW | 1 |
| 20 | 938920401018 | SCREW-WASHER, 4X10 | 1 |
| 21 | 938920401808 | SCREW-WASHER, 4X18 | 2 |
| 22 | 938920501218 | SCREW-WASHER, 5X12 | 1 |
| 23 | 9500202659 | CLIP, TUBE(B6.5) | 1 |
| 24 | 99101GCK0850 | JET, MAIN, #85 | 1 |
| 25 | 99103KWP0350 | JET COMP.(#35X#35) | 1 |
