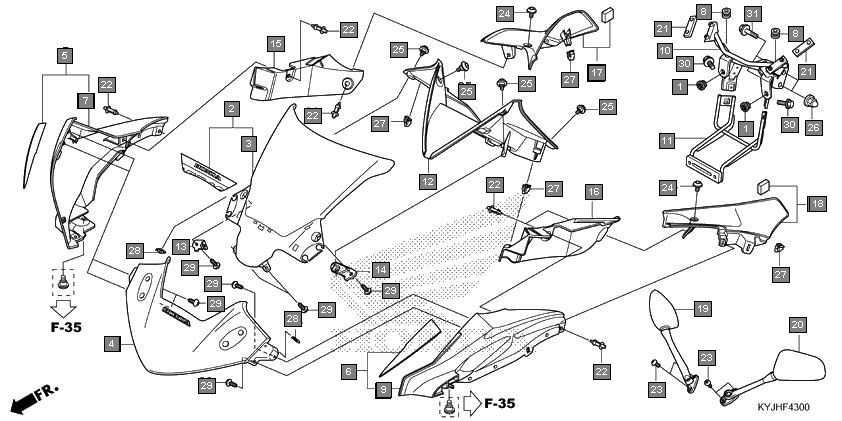

Motorcycles CBR250R CBR250RAJ Frame Upper cowl
Ref.No. Part No. Description Oty
1 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
2 64100KYJM90ZA WINDSCREEN SET(WL) *TYPE1* 1
3 64110KYJH80 WINDSCREEN 1
4 64200KYJM90ZA COWL SET, FR. UPPER(WL) *TYPE1* 1
5 64200KYJDA0ZB COWL SET, FR. UPPER(WL) *TYPE3* 1
6 64200KYJDA0ZA COWL SET, FR. UPPER(WL) *TYPE4* 1
7 64200KYJDA0ZD COWL SET, FR. UPPER(WL) *TYPE1* 1
8 64200KYJDA0ZC COWL SET, FR. UPPER(WL) *TYPE2* 1
9 64201KYJM90ZA COWL SET, R. FR. SIDE(WL) *TYPE1*...................... ¿ 1
10 64202KYJM90ZA COWL SET, L. FR. SIDE(WL) *TYPE1* 1
11 64210KPPT00ZY COWL, R. FR. SIDE *NH303M* MAT AXIS GRAY METALLIC 1
12 64210KPPT00ZP COWL, R. FR. SIDE *R321* SPORTS RED 1
13 64210KPPT00ZX COWL, R. FR. SIDE *Y206P* PEARL SPORTS YELLOW 1
14 64216GJ2730 RUBBER, SCREEN SETTING 2
15 64220KPPT00ZY COWL, L. FR. SIDE *NH303M* MAT AXIS GRAY METALLIC 1
16 64220KPPT00ZX COWL, L. FR. SIDE *Y206P* PEARL SPORTS YELLOW 1
17 64220KPPT00ZQ COWL, L. FR. SIDE *R321* SPORTS RED 1
18 64221KYJDA0 STAY COMP., FR. COWL UPPER 1
19 64225KYJ710 BRAKET COMP., FR. NUMBER PLATE 1
20 64260KYJDA0 COWL, FR. INNER 1
21 64261KPPT00 STAY, R. FR. INNER COWL 1
22 64262KPPT00 STAY, L. FR. INNER COWL 1
23 64270KPPT00 COWL, R. SIDE INNER 1
24 64280KPPT00 COWL, L. SIDE INNER 1
25 64500KYJDA0ZC LID SET, R. TANK(WL) *TYPE2* 1
26 64500KYJDA0ZA LID SET, R. TANK(WL) *TYPE4* 1
27 64500KYJDA0ZB LID SET, R. TANK(WL) *TYPE3* 1
28 64500KYJT10 LID ASSY., R. TANK 1
29 64500KYJDA0ZD LID SET, R. TANK(WL) *TYPE1* 1
30 64600KYJDA0ZC LID SET, L. TANK(WL) *TYPE2* 1
31 64600KYJDA0ZB LID SET, L. TANK(WL) *TYPE3* 1
32 64600KYJDA0ZD LID SET, L. TANK(WL) *TYPE1* 1
33 64600KYJDA0ZA LID SET, L. TANK(WL) *TYPE4* 1
34 64600KYJT10 LID ASSY., L. TANK 1
35 88110KYJH01 MIRROR ASSY., R. BACK 1
36 88120KYJH01 MIRROR ASSY., L. BACK 1
37 88201KPPT00 RUBBER, BACK MIRROR 2
38 90116KWT900 RIVET, PUSH, 7MM 6
39 90130KPPT00 BOLT, SOCKET, 6X13 4
40 90132KPPT00 SCREW, PAN, 6X10 2
41 90134KPPT00 SCREW, PAN, 5X14 4
42 90307KYJ710 NUT, CAP, 8MM 2
43 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
44 90677KANT00 NUT, CLIP, 5MM 2
45 9390324380 SCREW, TAPPING, 4X12 8
46 957010801200 BOLT, FLANGE, 8X12 2
47 958010803200 BOLT, FLANGE, 8X32 2
