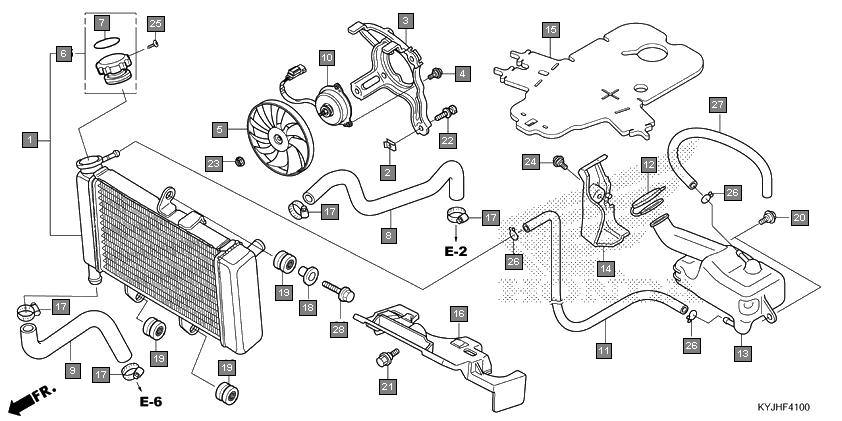

Motorcycles CBR250R CBR250RAJ Frame Radiator
Ref.No. Part No. Description Oty
1 19010KYJ921 RADIATOR COMP. 1
2 19014KEA003 NUT, SETTING(6MM) 3
3 19015KYJ901 SHROUD COMP. 1
4 19016KEA003 SCREW, PAN, 4X8.5 3
5 19020KVZ631 FAN COMP., COOLING 1
6 19045KPCD51 CAP COMP., RADIATOR(T.RAD) 1
7 19055KPCD51 SEAL, RADIATOR CAP 1
8 19062KYJ900 HOSE, RADIATOR UPPER 1
9 19067KYJ900 HOSE, RADIATOR LOWER 1
10 19080KYJ901 MOTOR ASSY., FAN 1
11 19105KYJ900 TUBE, RADIATOR BREATHER 1
12 19109KPC640 CAP, RESERVE TANK 1
13 19110KYJ900 TANK, RADIATOR RESERVE 1
14 19111KYJ900 COVER, RADIATOR RESERVE TANK 1
15 19125KYJ900 RUBBER, HEAT GUARD 1
16 19126KYJDA0 COVER, RADIATOR LOWER 1
17 19517KYJH00 CLAMP, HOSE, 16-27MM 4
18 61102KTYD30 COLLAR, RADIATOR MOUNTING 1
19 61304415000 RUBBER, HEADLIGHT CASE MOUNTING 3
20 90111162000 BOLT, FLANGE, 6MM 2
21 90111KWP900 BOLT, INNER COVER 1
22 90120KCR003 BOLT-WASHER, 6X16 3
23 90315MFL003 NUT, FLANGE, 3MM 1
24 91509GE2760 SCREW, PAN, 5X11.5 1
25 9390122020 SCREW, TAPPING, 3X6 1
26 9500202100 CLIP, TUBE(B10) 3
27 19106KYJDA0 TUBE, RADIATOR DRAIN 1
28 957010602207 BOLT, FLANGE, 6X22 1
