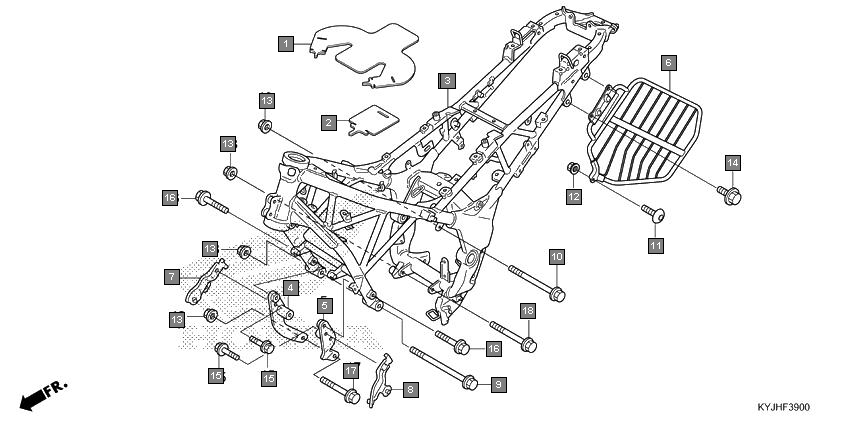

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17543KYJ900 | RUBBER, GUARD | 1 |
2 | 32800KYJ900 | RUBBER SHEET, HARNESS GUARD | 1 |
3 | 50100KYJDA0ZB | BODY COMP., FRAME *NH303M* MAT AXIS GRAY METALLIC | 1 |
4 | 50100KYJDA0ZA | BODY COMP., FRAME *NH411M* FORCE SILVER METALLIC | 1 |
5 | 50351KYJ900 | PLATE COMP., R. FR. ENGINE HANGER | 1 |
6 | 50361KYJ900 | PLATE COMP., L. FR. ENGINE HANGER | 1 |
7 | 51103KYJ710 | GUARD, SARI | 1 |
8 | 64315KYJ900 | STAY, R. COWL UNDER | 1 |
9 | 64325KYJ900 | STAY, L. COWL UNDER | 1 |
10 | 90111KYJ900 | BOLT, FLANGE, 10X273 | 1 |
11 | 90113KYJ900 | BOLT, FLANGE, 10X145 | 1 |
12 | 90127KYJ900 | BOLT, SOCKET, 8X22 | 1 |
13 | 9405008070 | NUT, FLANGE, 8MM | 1 |
14 | 9405010000 | NUT, FLANGE, 10MM | 4 |
15 | 957010801407 | BOLT, FLANGE, 8X14 | 2 |
16 | 957010801607 | BOLT, FLANGE, 8X16 | 2 |
17 | 958011007000 | BOLT, FLANGE, 10X70 | 2 |
18 | 958011010500 | BOLT, FLANGE, 10X105 | 1 |
19 | 958011013000 | BOLT, FLANGE, 10X130 | 1 |
