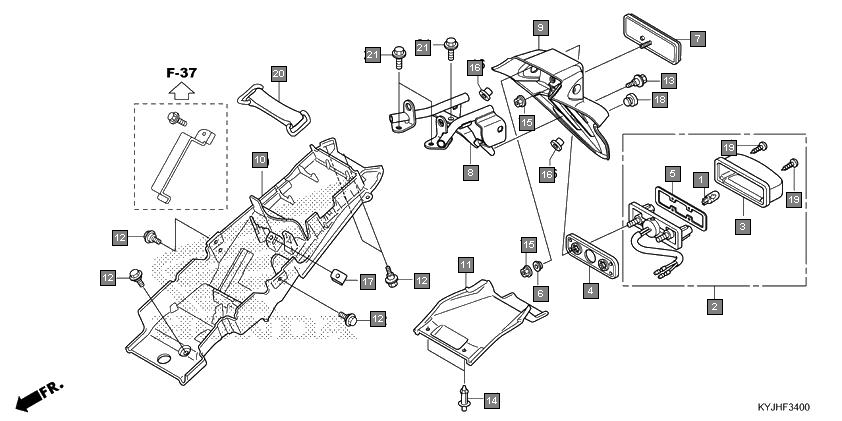

Motorcycles CBR250R CBR250RAJ Frame Rear fender
Ref.No. Part No. Description Oty
1 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
2 33720KYJ901 LIGHT ASSY., LICENSE(12V 5W) 1
3 33723KYJ901 COVER COMP. 1
4 33728KPPT00 RUBBER, LICENSE LIGHT 1
5 33729KSPB01 PACKING, LENS 1
6 33731MJ0940 COLLAR, REGULATOR MOUNTING 2
7 33741KPL902 REFLECTOR, REFLEX 1
8 50186KYJ900 STAY, RR. FENDER 1
9 80100KYJDA0 FENDER, RR. 1
10 80101KYJ710 FENDER B, RR. 1
11 80140KYJDA0 COVER, RR. UNDER 1
12 90111162000 BOLT, FLANGE, 6MM 5
13 90111KWF900 BOLT, FLANGE, 6MM 1
14 90116SP0003 CLIP, BUMPER SEAL 2
15 90301KWN901 NUT, U, 5MM 3
16 90311KTE910 NUT, RR. FENDER 2
17 90320MM5000 NUT, SPRING, 6MM 1
18 90852KPPT00 PLUG, HOLE 1
19 9390124480 SCREW, TAPPING, 4X16 2
20 9501215001 BAND, BATTERY 1
21 957010801200 BOLT, FLANGE, 8X12 3
