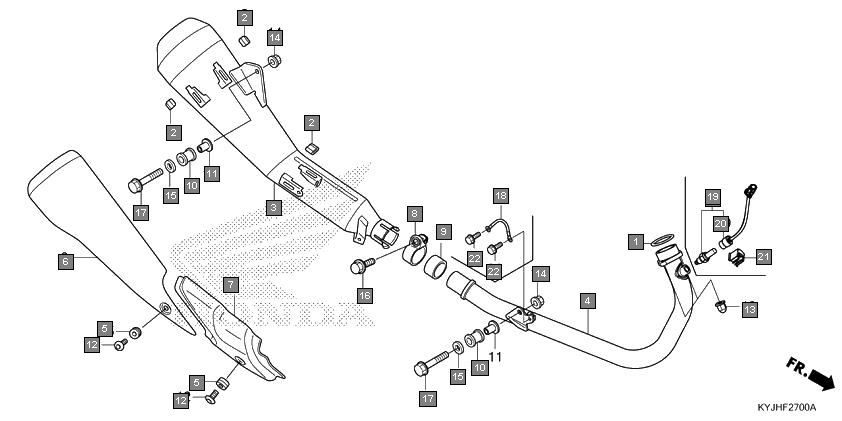

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18291MEB670 | GASKET, EX. PIPE | 1 |
2 | 18293MN0000 | RUBBER, PROTECTOR | 3 |
3 | 18310KYJDA0 | MUFFLER COMP. | 1 |
4 | 18320KYJDA0 | PIPE COMP., EX. | 1 |
5 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
6 | 18355KYJT00 | COVER A, MUFFLER | 1 |
7 | 18356KYJ900 | COVER B, MUFFLER | 1 |
8 | 18373KYJ900 | BAND, MUFFLER | 1 |
9 | 18392KYJ901 | PACKING, MUFFLER | 1 |
10 | 18421MB0000 | RUBBER, MUFFLER MOUNTING | 2 |
11 | 18422KAF700 | COLLAR, MUFFLER MOUNTING | 2 |
12 | 90113KYJ710 | SCREW, PAN, 6X12 | 2 |
13 | 90305KSP900 | NUT, EXHAUST PIPE, 8MM | 2 |
14 | 9405008000 | NUT, FLANGE, 8MM | 2 |
15 | 9410308000 | WASHER, PLAIN, 8MM | 2 |
16 | 957010803802 | BOLT, FLANGE, 8X38 | 1 |
17 | 957010805000 | BOLT, FLANGE, 8X50 | 2 |
18 | 32200KYJUB0 | SUB HARNESS, OXYGEN SENSOR EARTH | 1 |
19 | 36532KYJUB11 | SENSOR, OXYGEN | 1 |
20 | 36532KYJUB1 | SENSOR, OXYGEN | 1 |
21 | 36533KYJUB1 | CORD COMP., OXYGEN SENSOR | 1 |
22 | 36538K33D00 | COVER, O2 SENSOR | 1 |
23 | 957010601000 | BOLT, FLANGE, 6X10 | 2 |
