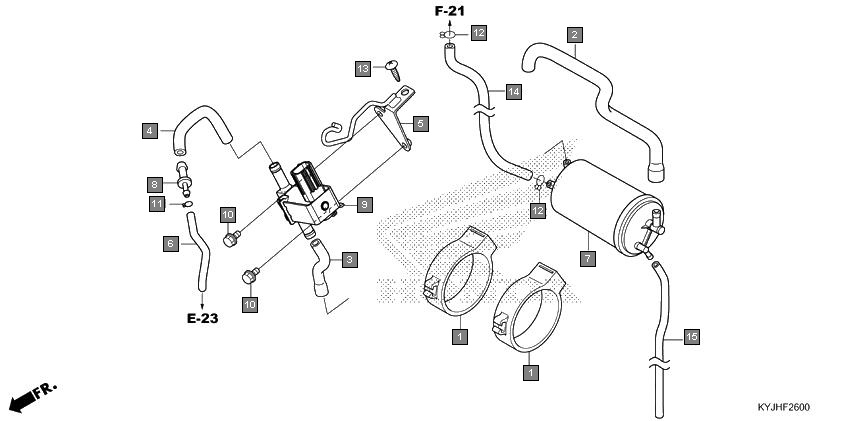

Motorcycles CBR250R CBR250RAJ Frame Canister
Ref.No. Part No. Description Oty
1 17411KYJ900 RUBBER, CANISTER MOUNT 2
2 17413KYJDA0 TUBE, AIR 1
3 17414KYJDA0 TUBE(PCV-CANISTER) 1
4 17415KYJDA0 TUBE A(PCV-ENGINE) 1
5 17416KYJ900 STAY COMP., PURGE CONTROL VALVE 1
6 17417KYJDA0 TUBE B(PCV-ENGINE) 1
7 17421KYJ902 CANISTER COMP. 1
8 19126KM1010 JOINT, TUBE 1
9 36162MCT681 VALVE, PURGE CONTROL SOLENOID 1
10 90002MC7000 BOLT, FLANGE, 5X8 2
11 90651KWPF00 CLIP, TUBE(B7) 1
12 90652KWPF00 CLIP, TUBE(B8) 2
13 9390325280 SCREW, TAPPING, 5X12 1
14 950014527040 TUBE, FUEL, 4.5X270 (95001-45001-60M) 1
15 950014548040 TUBE, FUEL, 4.5X480 (95001-45001-60M) 1
