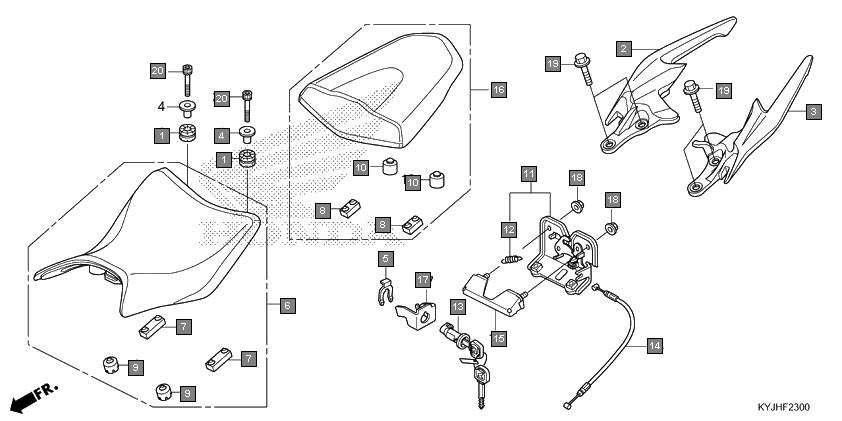

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 33705KW7900 | RUBBER A, TAILLIGHT MOUNTING | 2 |
| 2 | 50315KYJ710ZA | GRIP, R. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 3 | 50325KYJ710ZA | GRIP, L. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 4 | 61104428730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 2 |
| 5 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
| 6 | 77100KYJ711 | SEAT COMP., SINGLE | 1 |
| 7 | 77205286000 | RUBBER B, SEAT SETTING | 2 |
| 8 | 77205KPPT00 | RUBBER, SEAT SETTING | 2 |
| 9 | 77206KPPT00 | RUBBER, SEAT CUSHION | 2 |
| 10 | 77207KYJ900 | RUBBER, SEAT CUSHION | 2 |
| 11 | 77220KYJ900 | LOCK COMP., SEAT | 1 |
| 12 | 77234GN2000 | SPRING, SEAT LOCK | 1 |
| 13 | 77239KYJT01 | KEY, SEAT LOCK | 1 |
| 14 | 77240KYJ900 | CABLE, SEAT LOCK | 1 |
| 15 | 77250KYJ900 | COVER, SEAT LOCK | 1 |
| 16 | 77300KYJ711 | SEAT COMP., PILLION | 1 |
| 17 | 77582KPPT00 | STAY, SEAT LOCK CABLE | 1 |
| 18 | 9405006080 | NUT, FLANGE, 6MM | 2 |
| 19 | 957010802000 | BOLT, FLANGE, 8X20 | 4 |
| 20 | 966000602508 | BOLT, SOCKET, 6X25 | 2 |
