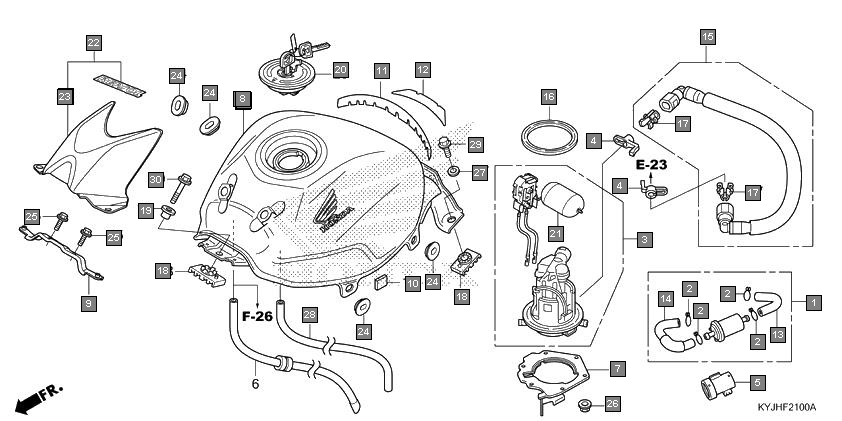

Motorcycles CBR250R CBR250RAJ Frame Fuel tank
Ref.No. Part No. Description Oty
1 06160KYJ900 FILTER KIT, FUEL 1
2 15771KV6000 CLIP, OIL DRAIN TUBE 4
3 16700KYJ901 PUMP ASSY., FUEL 1
4 16718KTW900 DAMPER A, CONNECTOR 2
5 16912KYJ900 HOLDER, FUEL FILTER 1
6 17507KYJ900 PLATE COMP., SETTING 1
7 17520KYJDA0ZB TANK SET, FUEL(WL) *TYPE3* 1
8 17520KYJDA0ZC TANK SET, FUEL(WL) *TYPE2* 1
9 17520KYJDA0ZA TANK SET, FUEL(WL) *TYPE4* 1
10 17520KYJDA0ZD TANK SET, FUEL(WL) *TYPE1* 1
11 17520KYJM90ZA TANK SET, FUEL(WL) *TYPE4* 1
12 17522KPPT00 STAY, TANK LID 1
13 17525KPPT00 RUBBER, FUEL TANK 2
14 17527KPPN00 FILM A,TANK PROTECTOR 1
15 17528KPPN00 FILM B, TANK PROTECTOR 1
16 17541KYJ900 TUBE A, FUEL PUMP 1
17 17542KYJ900 TUBE B, FUEL PUMP 1
18 17570KYJ901 HOSE COMP., FUEL FEED 1
19 17572KTR941 GASKET, FUEL PUMP 1
20 17577KSSB31 RETAINER(GRAY)(TOKAI) 2
21 17613KPPT00 CUSHION, FUEL TANK 3
22 17614KPPT00 COLLAR, FUEL TANK 1
23 17620KWF902 CAP COMP., FUEL FILLER 1
24 37800KYJ901 FUEL UNIT 1
25 64410KYJS90ZA COVER SET, FUEL TANK(WL) *TYPE1* 1
26 64450KPPT00ZL COVER, FUEL TANK *R321* SPORTS RED 1
27 64450KPPT00YA COVER, FUEL TANK *Y206P* PEARL SPORTS YELLOW 1
28 64450KPPT00YB COVER, FUEL TANK *NH303M* MAT AXIS GRAY METALLIC 1
29 83551300000 GROMMET, AIR CLEANER CASE 6
30 934010601400 BOLT-WASHER, 6X14 2
31 9405006000 NUT, FLANGE, 6MM 6
32 9410306800 WASHER, PLAIN, 6MM 2
33 950058077020 TUBE, 8X770(95005-80001-20M) 1
34 957010601208 BOLT, FLANGE, 6X12 2
35 957010802508 BOLT, FLANGE, 8X25 1
