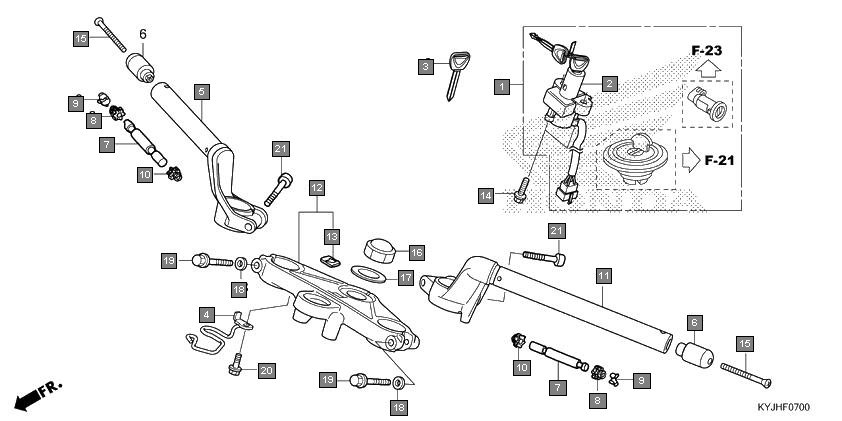

Motorcycles CBR250R CBR250RAJ Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010KYJT01 KEY SET 1
2 35100KYJT01 SWITCH ASSY., COMBINATION & LOCK 1
3 35121KSP910 KEY, BLANK 1
4 45158KYJ710 GUIDE, FR. BRAKE HOSE 1
5 53100KYJ900 PIPE COMP., R. STEERING HANDLE 1
6 53103KYJ900 WEIGHT A, STEERING HANDLE 2
7 53104KYJ900 WEIGHT B, STEERING HANDLE 2
8 53107MJ0000 RUBBER B, HANDLE WEIGHT 2
9 53108KR3770 RING, HANDLE WEIGHT SNAP 2
10 53109MV4000 RUBBER B, HANDLE WEIGHT 2
11 53150KYJ900 PIPE COMP., L. STEERING HANDLE 1
12 53300KYJT00 BRIDGE COMP., FORK TOP 1
13 86150KWS601 EMBLEM, PRODUCT(SJS) 1
14 90100KYJ710 BOLT, COMBINATION SWITCH SETTING 2
15 90191KYJ710 SCREW, OVAL, 6X50 2
16 90304KSP900 NUT, STEERING STEM 1
17 90503KGA900 WASHER, STEERING STEM 1
18 9410208000 WASHER, PLAIN, 8MM 2
19 957010804507 BOLT, FLANGE, 8X45 2
20 960010601207 BOLT, FLANGE, 6X12 1
21 966000803207 BOLT, SOCKET, 8X32 2
