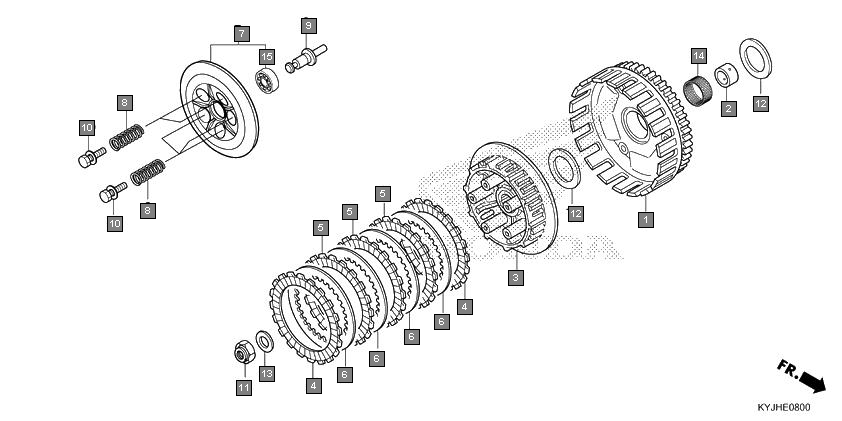

Motorcycles CBR250R CBR250RAJ Engine Clutch
Ref.No. Part No. Description Oty
1 22100KYJUB1 OUTER COMP., CLUTCH(73T) 1
2 22116KYJ900 GUIDE, CLUTCH OUTER 1
3 22121KYJ711 CENTER, CLUTCH 1
4 22201HM3A60 DISK, CLUTCH FRICTION 2
5 22201KYJ711 DISK, CLUTCH FRICTION 3
6 22321KYJUB1 PLATE, CLUTCH 4
7 22350KYJ711 PLATE COMP., CLUTCH PRESSURE 1
8 22401KYJ711 SPRING, CLUTCH 5
9 22847KYJ712 PIN, CLUTCH LIFTER 1
10 90050KYJ711 BOLT-WASHER, 6X25 5
11 90201KYJ900 NUT, SPECIAL, 16MM 1
12 90404KVK900 WASHER, 20X40X2 2
13 90434KPS900 WASHER, 16MM 1
14 91012KYJ711 BEARING, NEEDLE, 28X33X16.8 1
15 961006001000 BEARING, RADIAL BALL, 6001 1
