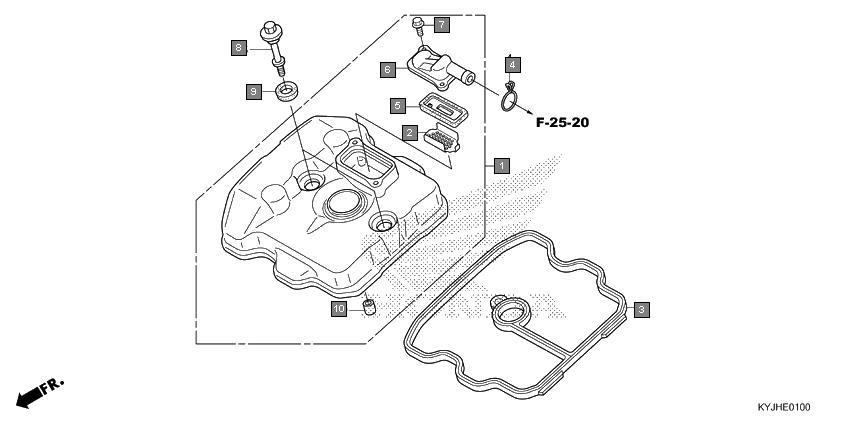

Motorcycles CBR250R CBR250RAJ Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12300KYJ900 COVER ASSY., CYLINDER HEAD 1
2 12341MAT750 PLATE, PORT(AI) 1
3 12391KYJ710 GASKET COMP., CYLINDER HEAD COVER 1
4 15772KYJS00 CLIP, BREATHER TUBE 1
5 18601KEA741 VALVE COMP., REED(ARAI) 1
6 18612KYJ900 COVER, REED VALVE 1
7 90002KGH900 BOLT, FLANGE, 5X14 2
8 90018KYJ900 BOLT, HEAD COVER 2
9 90543MV9670 RUBBER, MOUNTING 2
10 9430110160 DOWEL PIN, 10X16 1
