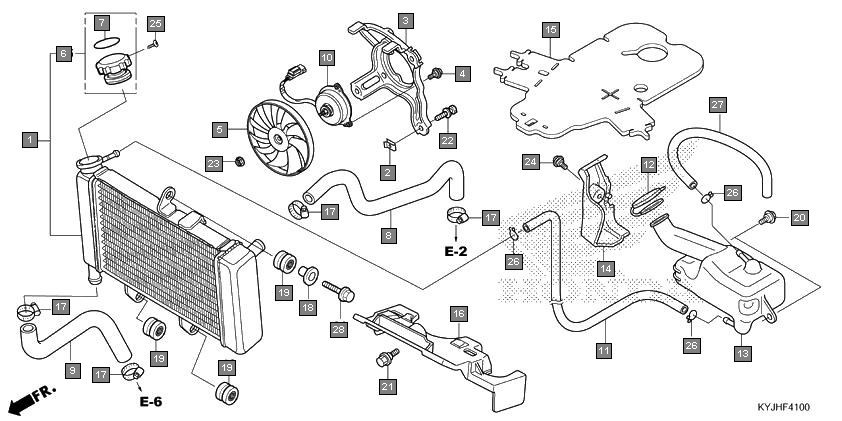

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 19010KYJ921 | RADIATOR COMP. | 1 |
| 2 | 19014KEA003 | NUT, SETTING(6MM) | 3 |
| 3 | 19015KYJ901 | SHROUD COMP. | 1 |
| 4 | 19016KEA003 | SCREW, PAN, 4X8.5 | 3 |
| 5 | 19020KVZ631 | FAN COMP., COOLING | 1 |
| 6 | 19045KPCD51 | CAP COMP., RADIATOR(T.RAD) | 1 |
| 7 | 19055KPCD51 | SEAL, RADIATOR CAP | 1 |
| 8 | 19062KYJ900 | HOSE, RADIATOR UPPER | 1 |
| 9 | 19067KYJ900 | HOSE, RADIATOR LOWER | 1 |
| 10 | 19080KYJ901 | MOTOR ASSY., FAN | 1 |
| 11 | 19105KYJ900 | TUBE, RADIATOR BREATHER | 1 |
| 12 | 19109KPC640 | CAP, RESERVE TANK | 1 |
| 13 | 19110KYJ900 | TANK, RADIATOR RESERVE | 1 |
| 14 | 19111KYJ900 | COVER, RADIATOR RESERVE TANK | 1 |
| 15 | 19125KYJ900 | RUBBER, HEAT GUARD | 1 |
| 16 | 19126KYJDA0 | COVER, RADIATOR LOWER | 1 |
| 17 | 19517KYJH00 | CLAMP, HOSE, 16-27MM | 4 |
| 18 | 61102KTYD30 | COLLAR, RADIATOR MOUNTING | 1 |
| 19 | 61304415000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 |
| 20 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
| 21 | 90111KWP900 | BOLT, INNER COVER | 1 |
| 22 | 90120KCR003 | BOLT-WASHER, 6X16 | 3 |
| 23 | 90315MFL003 | NUT, FLANGE, 3MM | 1 |
| 24 | 91509GE2760 | SCREW, PAN, 5X11.5 | 1 |
| 25 | 9390122020 | SCREW, TAPPING, 3X6 | 1 |
| 26 | 9500202100 | CLIP, TUBE(B10) | 3 |
| 27 | 19106KYJDA0 | TUBE, RADIATOR DRAIN | 1 |
| 28 | 957010602207 | BOLT, FLANGE, 6X22 | 1 |
