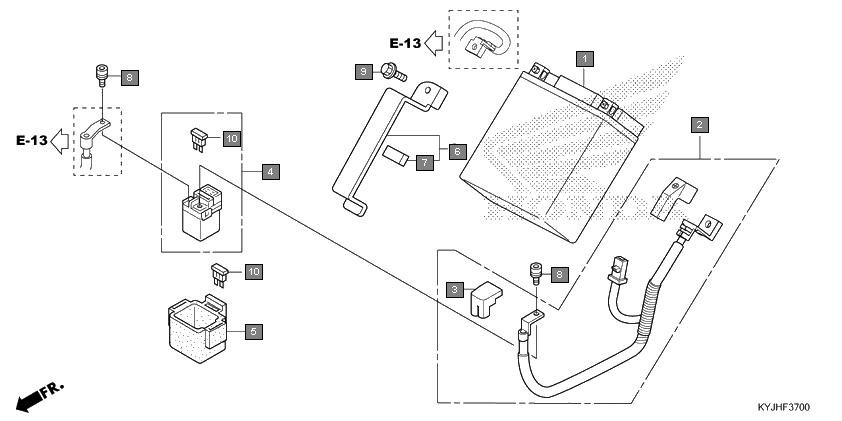

Motorcycles CBR250R CBR250RJ Frame Battery
Ref.No. Part No. Description Oty
1 31500KRY801 BATTERY ASSY.(ETZ7-BS)(EXIDE) 1
2 32401KYJ901 CABLE, STARTER MAGNETIC BATTERY 1
3 32406KAZ010 COVER, STARTER MAGNETIC TERMINAL 1
4 35850MR5007 SWITCH ASSY., STARTER MAGNETIC 1
5 35856MBG003 RUBBER, SHOCK 1
6 80102KYJ900 BAND COMP., BATTERY 1
7 80109KYJ900 SPONGE, RUBBER 1
8 90111MR5000 BOLT, SOCKET, 5X9 2
9 957010601208 BOLT, FLANGE, 6X12 1
10 9820033000 FUSE, BLADE(30A) 2
