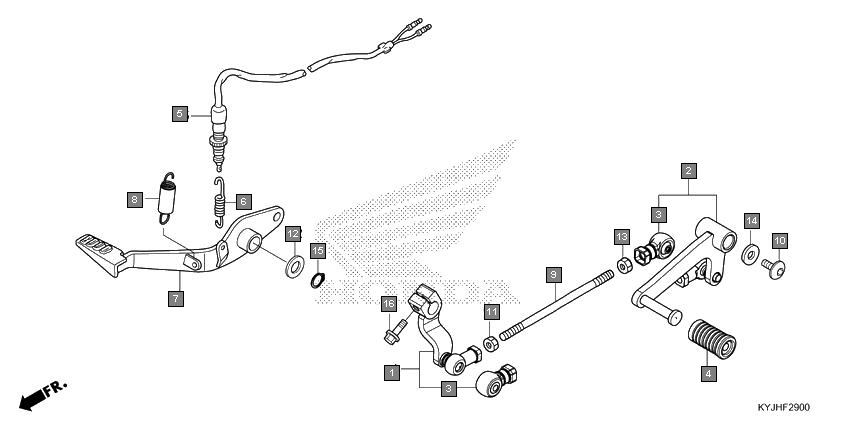

Motorcycles CBR250R CBR250RJ Frame Pedal
Ref.No. Part No. Description Oty
1 24710KYJ000 ARM COMP., GEAR CHANGE 1
2 24720KYJ000 PEDAL COMP., GEAR CHANGE 1
3 24724MBWD21 COVER, DUST 2
4 24781KSP860 RUBBER, CHANGE PEDAL 1
5 35350KYJ611 SWITCH ASSY., RR. STOP 1
6 35357HP0A00 SPRING, STOP SWITCH 1
7 46500KYJ900 PEDAL COMP., RR. BRAKE 1
8 46513KYJ900 SPRING ASSY., BRAKE PEDAL 1
9 90105KYJ900 BOLT, TIE ROD 1
10 90132KPPT00 SCREW, PAN, 6X10 1
11 90301KYJ900 NUT, SPECIAL, 6MM (LEFTHANDTHREAD) 1
12 90557230000 WASHER, 15.2X25 1
13 94001060000S NUT, HEX., 6MM 1
14 9410306700 WASHER, PLAIN, 6MM 1
15 9451115000 CIRCLIP, EXTERNAL, 15MM 1
16 957010602007 BOLT, FLANGE, 6X20 1
