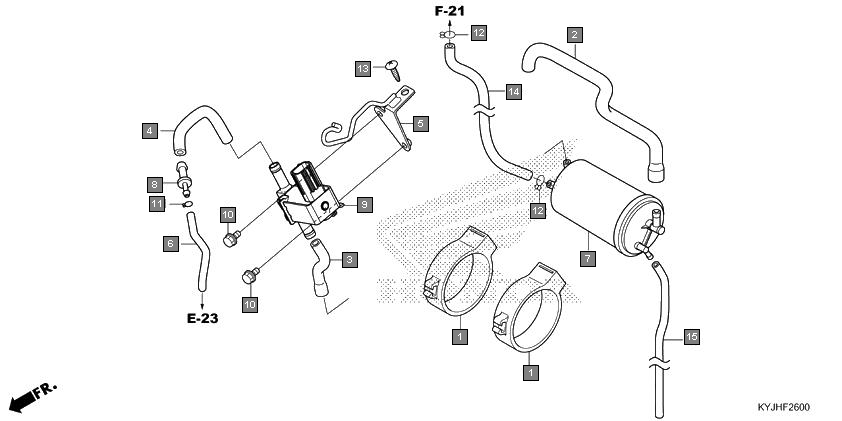

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17411KYJ900 | RUBBER, CANISTER MOUNT | 2 |
| 2 | 17413KYJDA0 | TUBE, AIR | 1 |
| 3 | 17414KYJDA0 | TUBE(PCV-CANISTER) | 1 |
| 4 | 17415KYJDA0 | TUBE A(PCV-ENGINE) | 1 |
| 5 | 17416KYJ900 | STAY COMP., PURGE CONTROL VALVE | 1 |
| 6 | 17417KYJDA0 | TUBE B(PCV-ENGINE) | 1 |
| 7 | 17421KYJ902 | CANISTER COMP. | 1 |
| 8 | 19126KM1010 | JOINT, TUBE | 1 |
| 9 | 36162MCT681 | VALVE, PURGE CONTROL SOLENOID | 1 |
| 10 | 90002MC7000 | BOLT, FLANGE, 5X8 | 2 |
| 11 | 90651KWPF00 | CLIP, TUBE(B7) | 1 |
| 12 | 90652KWPF00 | CLIP, TUBE(B8) | 2 |
| 13 | 9390325280 | SCREW, TAPPING, 5X12 | 1 |
| 14 | 950014527040 | TUBE, FUEL, 4.5X270 (95001-45001-60M) | 1 |
| 15 | 950014548040 | TUBE, FUEL, 4.5X480 (95001-45001-60M) | 1 |
